Same model may have multiple batches, images only for reference.

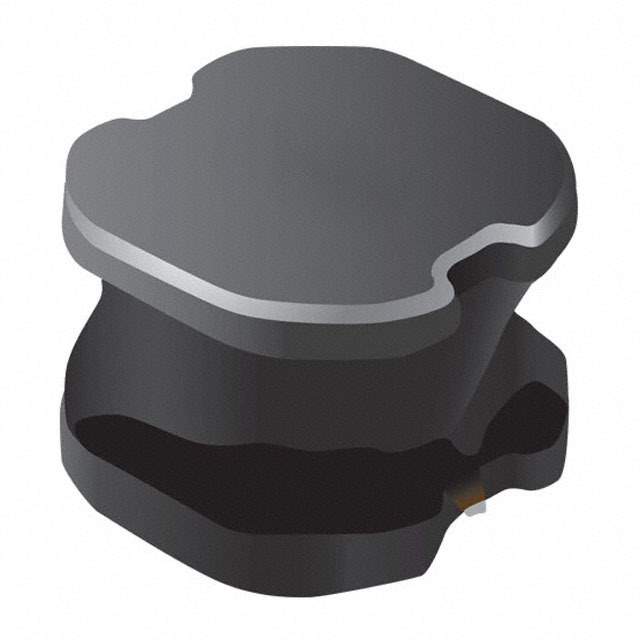

SRN6045-221M Real Image
Same model may have multiple batches, images only for reference.

SRN6045-221M

Part No SRN6045-221M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 600MA 1.18OHM SM / 220 µH Semi-Shielded Drum Core, Wirewound Inductor 600 mA 1.18Ohm Max Nonstandard
Datasheet
SRN6045-221M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN6045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 700mA
Shielding Semi-Shielded
DC Resistance (DCR) 1.18Ohm Max
Q @ Freq 25 @ 796kHz
Frequency - Self Resonant 4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRN6045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names SRN6045-221MDKR,SRN6045-221MTR,SRN6045-221M-ND,SRN6045-221MCT
Standard Package 1,000
Win Source Part Number 1095954-SRN6045-221M
Ultra Librarian 3D Model Ultra Librarian SRN6045-221M CAD Model

Description

The Bourns SRN6045 is a fixed inductor designed for surface mount applications.

  • Type: Wirewound drum core type inductor
  • Mounting: Surface mount
  • Shielding: Semi-shielded
  • Series: SRN6045
  • Inductance: 220μH
  • Tolerance: ±20%
  • Q Value: 25 @ 796kHz
  • Self-Resonant Frequency: 4MHz
  • Package: Nonstandard
  • Dimension: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Packaging: Tape and reel
  • Standard Package: 1,000
