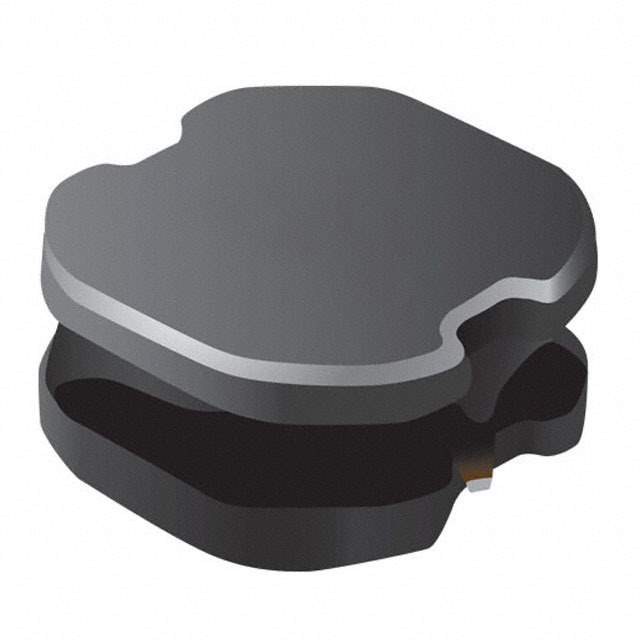

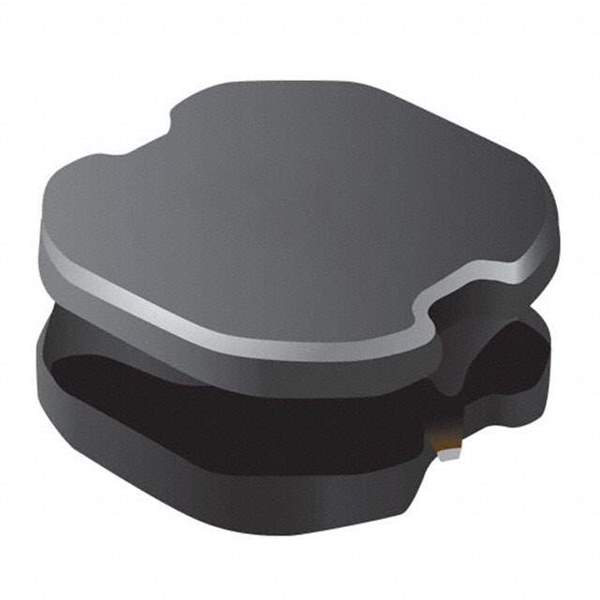

Same model may have multiple batches, images only for reference.

SRN8040-1R0Y

Name: SRN8040-1R0Y
Brand: Bourns Inc.
SKU: 1137906
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRN8040-1R0Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 1UH 7.8A 10 MOHM SMD / 1 µH Semi-Shielded Drum Core, Wirewound Inductor 7.8 A 10mOhm Max Nonstandard
Datasheet	SRN8040-1R0Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRN8040
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 µH
Tolerance	±30%
Current Rating (Amps)	7.8 A
Current - Saturation (Isat)	11A
Shielding	Semi-Shielded
DC Resistance (DCR)	10mOhm Max
Q @ Freq	13 @ 7.96MHz
Frequency - Self Resonant	75MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.157" (4.00mm)
Base Product Number	SRN8040
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRN80401R0Y,SRN8040-1R0YCT,SRN8040-1R0YTR,SRN8040-1R0YDKR
Standard Package	1,000
Win Source Part Number	1137906-SRN8040-1R0Y
Ultra Librarian 3D Model	Ultra Librarian SRN8040-1R0Y CAD Model

Alternative Products

Description

The SRN8040 series by Bourns Inc. is a drum core, wirewound inductor that is semi-shielded.

Series: SRN8040
Inductance: 1 µH
Tolerance: ±30%
Core Material: Ferrite
Q @ Freq: 13 @ 7.96MHz
DC Resistance (DCR): 10mOhm Max
Frequency of Self-Resonant: 75MHz
Package/Case: Nonstandard
Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
Operating Temperature: -40°C to 125°C
Alternative Part: SRN8040-1R0Y
Current Rating: 7.8 A
Inductance Frequency-Test: 100 kHz
