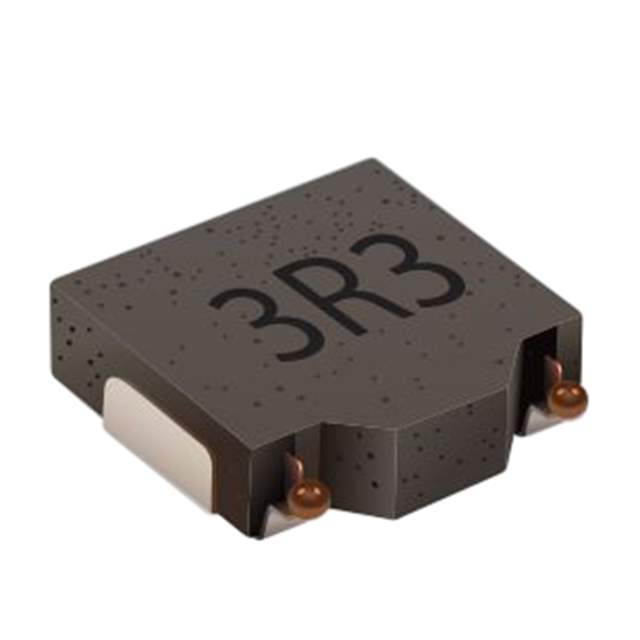

SRP0515-100K Real Image
Same model may have multiple batches, images only for reference.

SRP0515-100K

Part No SRP0515-100K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 2.4A 164 MOHM SMD / 10 µH Shielded Inductor 2.4 A 164mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0515
Package Tape & Reel
Material - Core Metal
Inductance 10 µH
Tolerance ±10%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 3.2A
Shielding Shielded
DC Resistance (DCR) 164mOhm Max
Q @ Freq 33 @ 2.52MHz
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max) 0.059" (1.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 118-SRP0515-100KDKR,118-SRP0515-100KTR,118-SRP0515-100KCT
Standard Package 3,000
Win Source Part Number 1012173-SRP0515-100K
Ultra Librarian 3D Model Ultra Librarian SRP0515-100K CAD Model

Description

The SRP0515-100K is a type of shielded fixed inductor that belongs to the Inductors, Coils, Chokes category.

  • Manufacturer: Bourns Inc.
  • Win Source Part Number: 1012173-SRP0515-100K
  • Package: Tape & Reel
  • Package / Case: Nonstandard
  • Height - Seated (Max): 0.059" (1.50mm)
  • Size / Dimension: 0.213" L x 0.201" W (5.40mm x 5.10mm)
  • Tolerance: ±10%
  • Q @ Freq: 33 @ 2.52MHz
  • Frequency - Self Resonant: 12MHz
  • DC Resistance (DCR): 164mOhm Max
  • Operating Temperature: -40°C ~ 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
  • Current - Rating: 2.4 A
  • Inductance Frequency - Test: 100 kHz
  • Current - Saturation: 3.2A
