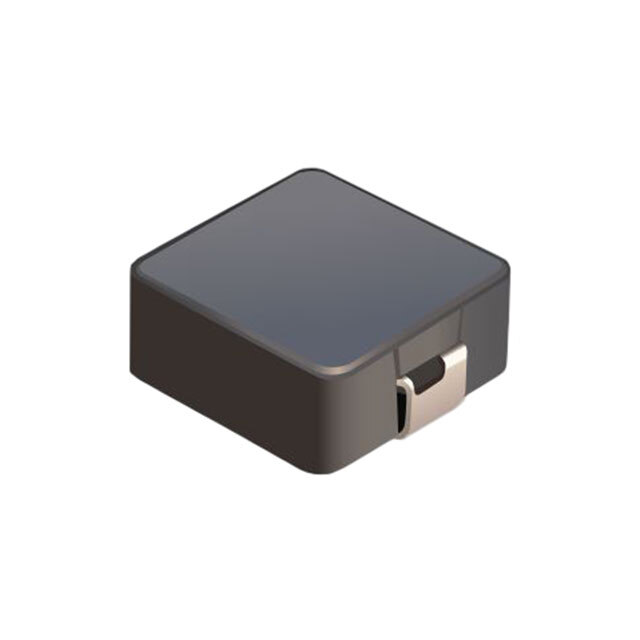

SRP1038AA-5R6M Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SRP1038AA-5R6M

Part No SRP1038AA-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description IND,11X10X3.8MM,5.6UH20%,8A,SHD,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, ChokesFixed Inductors
Mfr Bourns Inc.
Series SRP1038A
Part Status Active
Type Drum Core, Wirewound
Material - Core Metal
Inductance 5.6 μH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 14.1A
Shielding Shielded
DC Resistance (DCR) 22.8mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 14MHz
Ratings AEC-Q200
Operating Temperature -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Ultra Librarian 3D Model Ultra Librarian SRP1038AA-5R6M CAD Model
