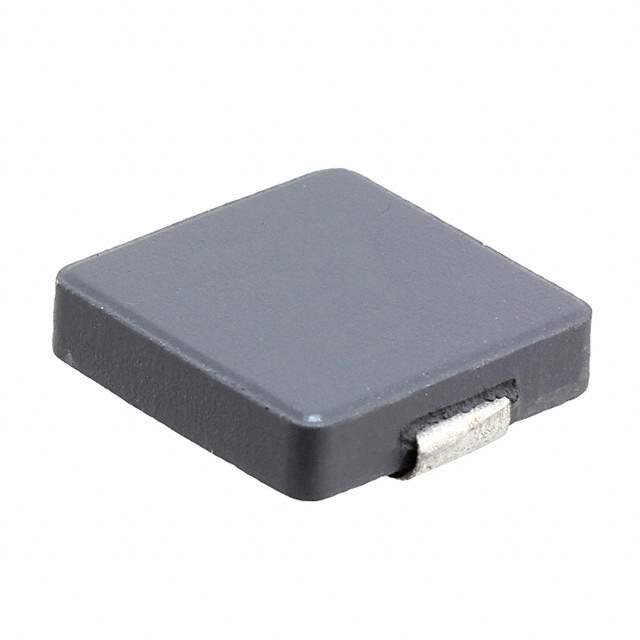

The SRP1238A series is a drum core, wirewound fixed inductor designed for inductance, coils, and chokes. The 958938-SRP1238A-R22M is a member of this series and comes in a nonstandard surface mount package. It has a shielding feature and an inductance of 220nH with a frequency of self-resonant of 125MHz. The device has a Q @ Freq of 10 @ 100kHz and a current rating of 38.5A. It has a tolerance of ±20% and can operate within a temperature range of -40°C to 150°C. The device is REACH unaffected with an ECCN of EAR99.

• Type: Fixed Inductor
• Core Type: Drum Core
• Winding Type: Wirewound
• Package Type: Nonstandard Surface Mount
• Shielding: Yes
• Inductance: 220nH
• Self-Resonant Frequency: 125MHz
• Q @ Freq: 10 @ 100kHz
• Current Rating: 38.5A
• Tolerance: ±20%
• Temperature Range: -40°C to 150°C
• REACH: Unaffected
• ECCN: EAR99
