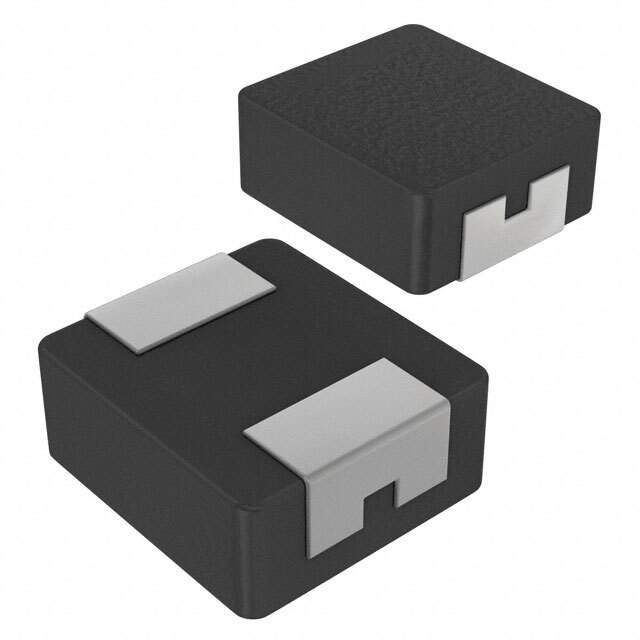

Same model may have multiple batches, images only for reference.

SRP4020TA-3R3M

Name: SRP4020TA-3R3M
Brand: Bourns Inc.
SKU: 959994
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SRP4020TA-3R3M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 3.5A 76 MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 3.5 A 76mOhm Max 2-SMD
Datasheet	SRP4020TA-3R3M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP4020TA
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	3.5 A
Current - Saturation (Isat)	4A
Shielding	Shielded
DC Resistance (DCR)	76mOhm Max
Q @ Freq	10 @ 100kHz
Frequency - Self Resonant	40MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2-SMD
Supplier Device Package	2-SMD
Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	SRP4020TA
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRP4020TA-3R3MCT,SRP4020TA-3R3MTR,SRP4020TA-3R3MDKR
Standard Package	3,000
Win Source Part Number	959994-SRP4020TA-3R3M
Ultra Librarian 3D Model	Ultra Librarian SRP4020TA-3R3M CAD Model

Alternative Products

Description

The Bourns SRP4020TA series is a fixed inductor with a drum core, wirewound type and a shielding feature.

Inductance: 3.3 µH
Tolerance: ±20%
Packaging: Tape & reel
Standard Package: 3,000
Mounting: SMD (SMT)
Height: 0.079" (2.00mm)
Q @ Freq: 10 @ 100kHz
Frequency - Self Resonant: 40MHz
DC Resistance (DCR): 76mOhm Max
Current Rating: 3.5 A
AEC-Q200 Rated: Yes
ECCN: EAR99
REACH: REACH unaffected
HTSUS: 8504.50.4000
