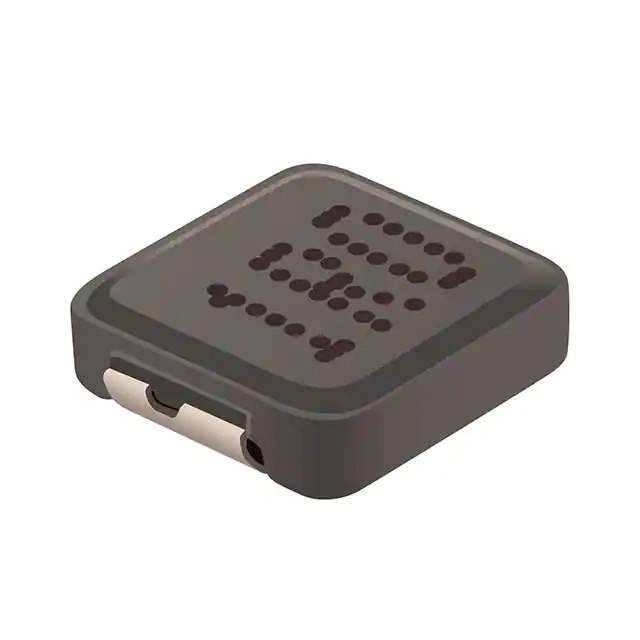

Same model may have multiple batches, images only for reference.

SRP5015TA-1R0M

Name: SRP5015TA-1R0M
Brand: Bourns Inc.
SKU: 852853
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP5015TA-1R0M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 1UH 6A 25.3 MOHM SMD
Datasheet	SRP5015TA-1R0M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Bourns Inc.
Series	SRP5015TA
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	6 A
Current - Saturation (Isat)	9A
Shielding	Shielded
DC Resistance (DCR)	25.3mOhm Max
Q @ Freq	10 @ 100kHz
Frequency - Self Resonant	75MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max)	0.059" (1.50mm)
Base Product Number	SRP5015TA
Standard Package	3,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
California Prop 65	Warning Information
Win Source Part Number	852853-SRP5015TA-1R0M
Ultra Librarian 3D Model	Ultra Librarian SRP5015TA-1R0M CAD Model

Alternative Products

Description

The SRP5015TA-1R0M is a fixed inductor from Bourns Inc.

Series: SRP5015TA
Design: Drum Core, Wirewound
Package: Tape and Reel
Mounting Type: Surface Mount
Size: 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height: 0.059" (1.50mm)
Inductance: 1 µH
Tolerance: ±20%
DC Resistance (DCR): 25.3mOhm max
Current Rating: 6A
Operating Temperature Range: -55°C to 150°C
Rating: AEC-Q200
Shielding: Shielded
Core Material: Carbonyl Powder
Product Status: Active
