Same model may have multiple batches, images only for reference.

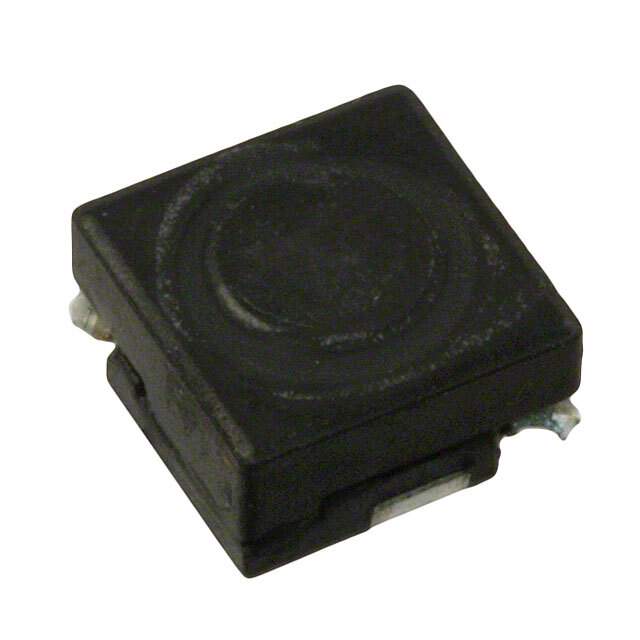

SRR0603-100ML Real Image
Same model may have multiple batches, images only for reference.

SRR0603-100ML

Part No SRR0603-100ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 1.1A 120 MOHM SMD / Shielded Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating (Amps) 1.1A
Current - Saturation 1.5A
Shielding Shielded
DC Resistance (DCR) 120mOhm Max
Q at Freq 16 at 2.52MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Maximum) 0.130" (3.30mm)
Part Number Series SRR0603
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812100-SRR0603-100ML
Ultra Librarian 3D Model Ultra Librarian SRR0603-100ML CAD Model

Description

The Bourns Inc. 812100-SRR0603-100ML is a wirewound shielded inductor with an inductance of 10μH and a tolerance of ±20%.

  • Core Material: Ferrite
  • DC Resistance (DCR): 120mOhm max
  • Temperature Range: -40°C to 125°C
  • Packaging: Nonstandard, Corner Terminal
  • Current Saturation: 1.5A
  • Frequency Self-Resonant: 25MHz
  • Height: 0.130" (3.30mm)
  • Dimensions: 0.256" L x 0.256" W (6.50mm x 6.50mm)
  • Q @ Freq: 16 @ 2.52MHz
  • Current Rating: 1.1A
