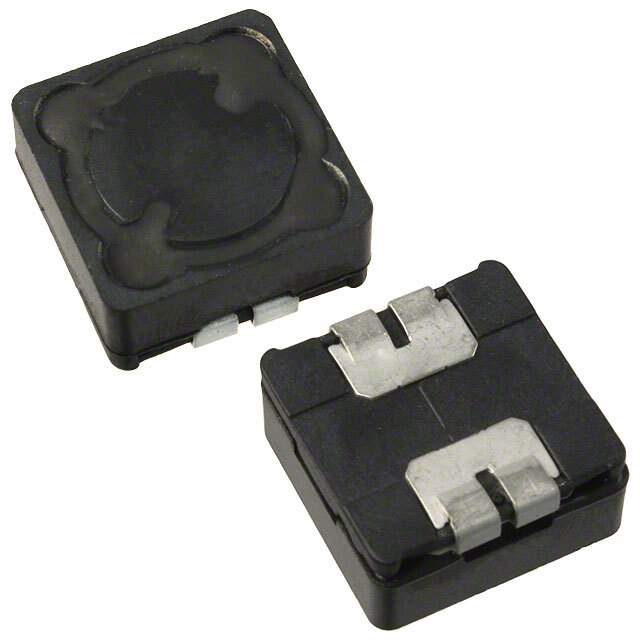

Same model may have multiple batches, images only for reference.

SRR1206-560YL

Name: SRR1206-560YL
Brand: Bourns Inc.
SKU: 676140
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SRR1206-560YL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	Shielded High Power Inductors
Datasheet	SRR1206-560YL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Bourns Inc.
Series	SRR1206
Packaging	Reel - TR
Type	Wirewound
Material - Core	Ferrite
Inductance	56μH
Tolerance	±15%
Current Rating	1.45A
Current - Saturation	2.5A
Shielding	Shielded
DC Resistance (DCR)	155 mOhm Max
Q @ Freq	21 @ 2.52MHz
Frequency - Self Resonant	7MHz
Operating Temperature Range	-40°C ~ 125°C
Test Frequency	1kHz
Mounting	SMD
Package	Nonstandard
Size	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Maximum)	0.256" (6.50mm)
Win Source Part Number	1258828-SRR1206-560YL
Manufacturer Homepage	www.bourns.com
Popularity	Medium
Supply and Demand Status	Balance
Family Name	SRR1206
Introduction Date	October 23, 2001
ECCN	EAR99
Country of Origin	Taiwan
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian SRR1206-560YL CAD Model

Alternative Products

Description

The Bourns Inc. SRR1206-560YL is a shielded wirewound inductor that comes in a non-standard package.

Inductance: 56μH
Current Rating: 1.45A
Tolerance: ±15%
Temperature Range: -40°C to 125°C
DC Resistance: 155 mOhm max
Material: ferrite
Self-Resonant Frequency: 7MHz
Package: reel - TR
Size: 0.500" L x 0.500" W (12.70mm x 12.70mm)
Popularity: popular
Estimated EOL date: 2024
