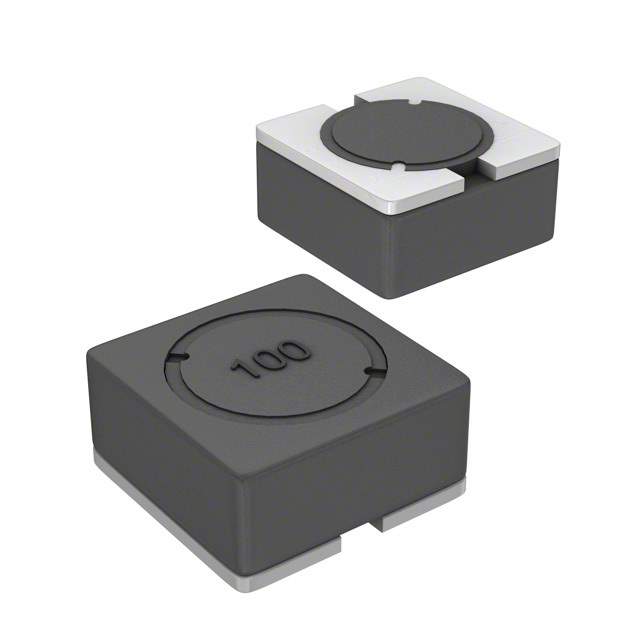

SRR5028-220Y Real Image
Same model may have multiple batches, images only for reference.

SRR5028-220Y

Part No SRR5028-220Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1.15A 120MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 1.15 A 120mOhm Max Nonstandard
Datasheet
SRR5028-220Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR5028
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±30%
Current Rating (Amps) 1.15 A
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 120mOhm Max
Q @ Freq 7 @ 2.52MHz
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR5028
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRR5028-220YCT,-SRR5028-220YTR,SRR5028-220YTR,-SRR5028-220YCT,SRR5028-220Y-ND,-SRR5028-220Y,-SRR5028-220Y-ND,SRR5028220Y
Standard Package 400
Win Source Part Number 973421-SRR5028-220Y
Ultra Librarian 3D Model Ultra Librarian SRR5028-220Y CAD Model

Description

The SRR5028 series inductor is a drum core, wirewound type of inductor that comes in a tape and reel or cut tape package.

  • Type: drum core, wirewound
  • Shielding: shielded
  • Inductance: 22 µH
  • Tolerance: ±30%
  • Core Material: ferrite
  • Q @ Freq: 7 @ 2.52MHz
  • Frequency Self-Resonant: 20MHz
  • Height - Seated (Max): 0.118” (3.00mm)
  • Package/Case: nonstandard
  • DC Resistance (DCR): 120mOhm max
  • Current Rating: 1.15A
  • Operating Temperature: -40°C to 125°C
