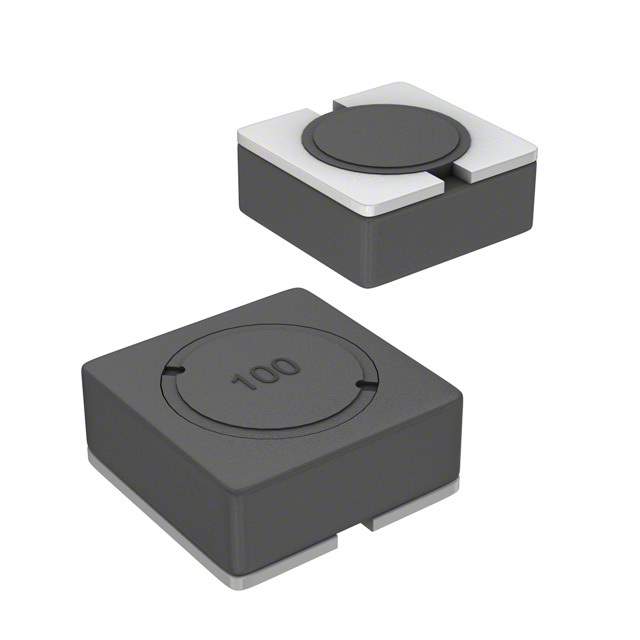

SRR6028-150Y Real Image
Same model may have multiple batches, images only for reference.

SRR6028-150Y

Part No SRR6028-150Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 15UH 1.7A 78 MOHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 1.7 A 78mOhm Max Nonstandard
Datasheet
SRR6028-150Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR6028
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±30%
Current Rating (Amps) 1.7 A
Current - Saturation (Isat) 1.3A
Shielding Shielded
DC Resistance (DCR) 78mOhm Max
Q @ Freq 9.5 @ 2.52MHz
Frequency - Self Resonant 22MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR6028
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRR6028150Y,-SRR6028-150YTR,SRR6028-150YTR,-SRR6028-150YCT,-SRR6028-150Y-ND,SRR6028-150Y-ND,SRR6028-150YCT,-SRR6028-150Y
Standard Package 500
Win Source Part Number 1095976-SRR6028-150Y
Ultra Librarian 3D Model Ultra Librarian SRR6028-150Y CAD Model

Description

The SRR6028-150Y is a fixed inductor that is part of the SRR6028 series. Bourns Inc. is the manufacturer.

  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Inductance: 15 μH
  • Tolerance: ±30%
  • Package: Tape and reel (TR) or cut tape (CT)
  • Standard Package: 500
  • Height: 0.118" (3.00mm)
  • Dimension: 0.268" L x 0.268" W (6.80mm x 6.80mm)
