Overview

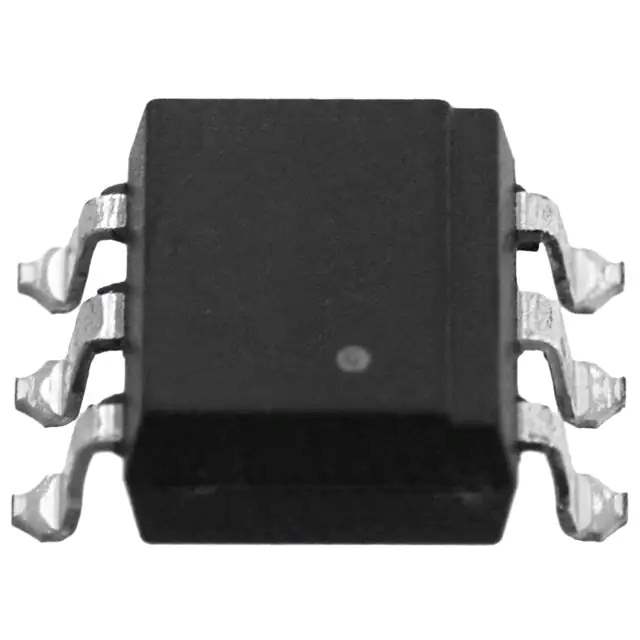

The 4N46#560 optocoupler provides excellent optoelectronic isolation using a light-sensitive silicon diode array and a phototransistor output.

Features and Benefits

• Superior isolation voltage: Ensures safety with ratings as high as 5,000 Vrms.
• Wide operational temperature range: From -40°C to +100°C.
• Enhanced efficiency: Reduces power consumption in circuits.
• Compact size: Ideal for limited-space installations.

Applications

• Telecommunication equipment
• Motor control circuits
• Instrumentation and control
• Embedded systems

Additional Details

The 4N46#560 is designed to maintain linearity and low coupling capacitance, which is crucial for precision in complex circuits.
