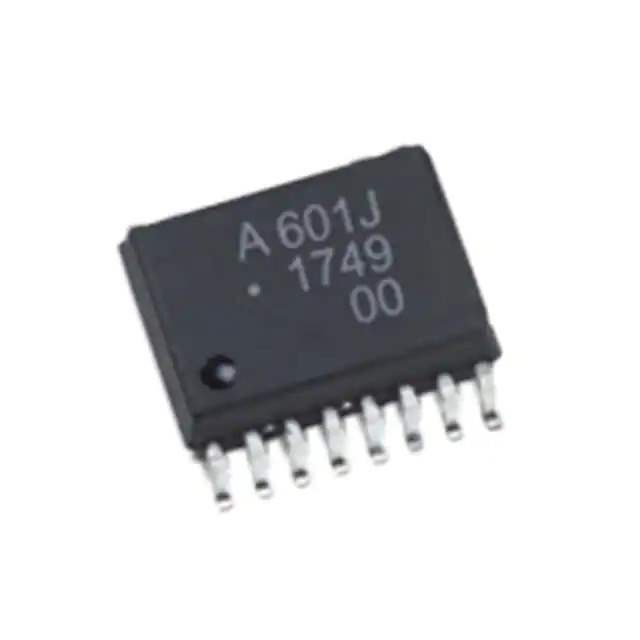

ASSR-601JT-500E Real Image
Same model may have multiple batches, images only for reference.

ASSR-601JT-500E

Part No ASSR-601JT-500E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description SSR RELAY SPST-NO 10MA 0-1500V / Solid State SPST-NO (1 Form A) 16-SOIC (0.295", 7.50mm Width), 12 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Broadcom Limited
Series ASSR
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC
Voltage - Input 1.55VDC
Voltage - Load 0 V ~ 1500 V
Load Current 10 mA
On-State Resistance (Max) 300 Ohms
Termination Style Gull Wing
Package / Case 16-SOIC (0.295", 7.50mm Width), 12 Leads
Supplier Device Package 16-SOIC
Base Product Number ASSR-601
Standard Package 850 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 861988-ASSR-601JT-500E
Ultra Librarian 3D Model Ultra Librarian ASSR-601JT-500E CAD Model

Description

The ASSR-601JT-500E is a solid-state relay from Broadcom Limited.

  • Configuration: Single-pole, normally open (SPST-NO)
  • Maximum On-State Resistance: 300 Ohms
  • Voltage Input: 1.55VDC
  • Output Type: AC
  • Mounting: Surface Mount
  • Package: 16-SOIC, 12 leads
  • Voltage Loads: Up to 1500V
  • Load Current: 10mA
  • Packaging: Tape and Reel
  • Standard Package: 850 pieces
  • Product Status: Active
  • Series: ASSR
