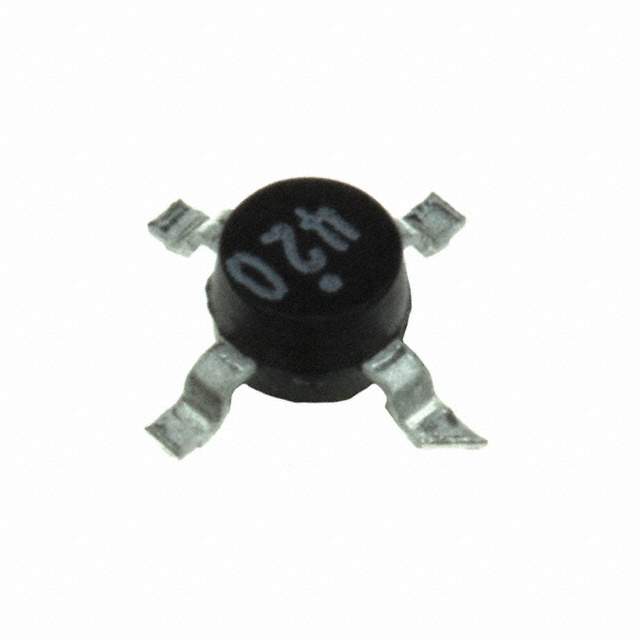

AT-42086-BLKG Real Image
Same model may have multiple batches, images only for reference.

AT-42086-BLKG

Part No AT-42086-BLKG
Manufacturer Broadcom Limited
Catalog RF Transistors (BJT)
Description TRANS NPN BIPO 12V 80MA 86-SMD
Datasheet
AT-42086-BLKG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Broadcom Limited
Packaging Bulk
Status Obsolete(EOL)
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 12V
Frequency - Transition 8GHz
Noise Figure (dB Typ @ f) 1.9dB to 3.5dB @ 2GHz to 4GHz
Gain 9dB to 13dB
Maximum Power Dissipation 500mW
Typical Gain (hFE) (Min) 30 @ 35mA, 8V
Maximum Current Collector 80mA
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 86 Plastic
Win Source Part Number 1019435-AT-42086-BLKG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AT-42086-BLKG CAD Model

Description

The 1019435-AT-42086-BLKG is a high-performance NPN transistor designed for use in discrete semiconductor products.

  • Collector-Emitter Breakdown Voltage: 12V
  • Typical Gain: 30 @ 35mA and 8V
  • Gain Range: 9dB to 13dB
  • Frequency Transition: 8GHz
  • Noise Figure: 1.9dB to 3.5dB @ 2GHz to 4GHz
  • Case: 86 plastic
  • Maximum Current Collector: 80mA
  • Maximum Power Dissipation: 500mW
  • Alternative Parts: AT-42086-TR1G, AT-42086-TR2G, and AT-32011-BLKG
  • Product Status: Obsolete (EOL)
  • Temperature Range: 150°C (TJ)
