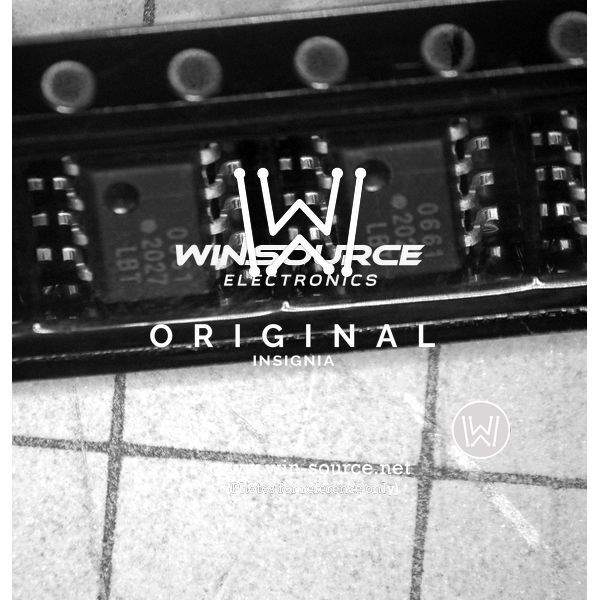

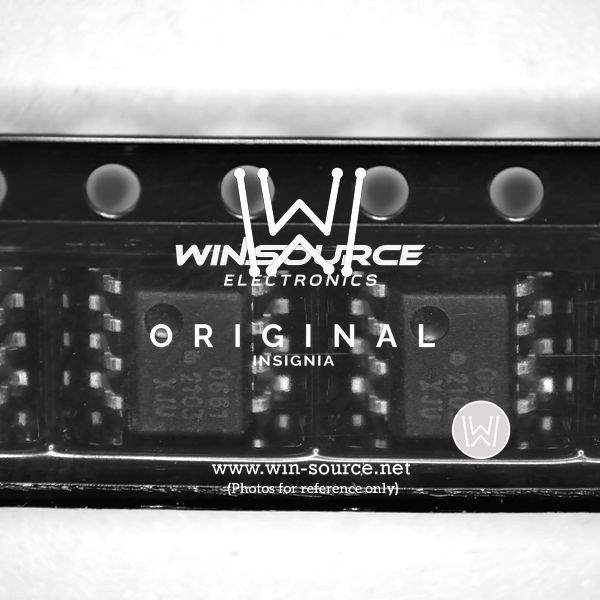

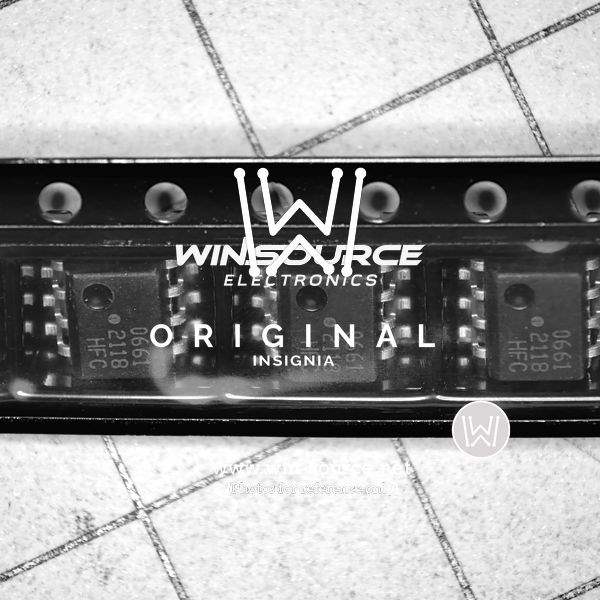

HCPL-0661-500E Broadcom Limited HCPL-0661-500E Real Image HCPL-0661-500E real image4549 HCPL-0661-500E Real Image1 HCPL-0661-500E Real Image2 HCPL-0661-500E Real Image3
Same model may have multiple batches, images only for reference.
HCPL-0661-500E Broadcom Limited HCPL-0661-500E Real Image HCPL-0661-500E real image4549 HCPL-0661-500E Real Image1 HCPL-0661-500E Real Image2 HCPL-0661-500E Real Image3
HCPL-0661-500E Broadcom Limited HCPL-0661-500E Real Image HCPL-0661-500E real image4549 HCPL-0661-500E Real Image1 HCPL-0661-500E Real Image2 HCPL-0661-500E Real Image3
Same model may have multiple batches, images only for reference.

HCPL-0661-500E

Part No HCPL-0661-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV 2CH OPEN COLL 8SO / Optocoupler Logic-Out Open Collector DC-IN 2-CH 8-Pin SOIC T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 15kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Channel Output Current 50mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Max) 100ns, 100ns
Rise and Fall Time 24ns, 10ns
Forward Voltage 1.5V
Continuous forward current- Max 15mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SO Tall
Win Source Part Number 016842-HCPL-0661-500E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 1,500
Family Name HCPL-0661
Introduction Date November 01, 2004
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HCPL-0661-500E CAD Model

Description

The Broadcom Limited HCPL-0661-500E is an isolator with open collector and Schottky clamped output.

  • Output Type: Open Collector, Schottky Clamped
  • Manufacturer: Broadcom Limited
  • Data Rate: 10MBd
  • Isolation Voltage: 3750Vrms
  • Application: Suitable for various electronic applications
