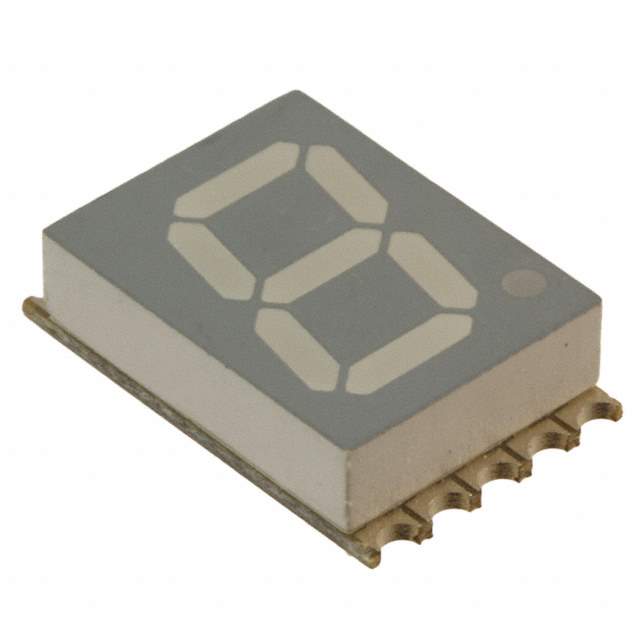

HDSM-433C Real Image
Same model may have multiple batches, images only for reference.

HDSM-433C

Part No HDSM-433C
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.39" SGL RED 10SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 21 Weeks
Features Display Modules - LED Character and Numeric Character
Manufacturer Broadcom Limited
Package Reel - TR
Family Name HDSM-433
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number 516-3498-1, HDSM-433C-ND, 516-3498-6, 516-3498-2
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844980-HDSM-433C
Ultra Librarian 3D Model Ultra Librarian HDSM-433C CAD Model

Description

The 844980-HDSM-433C is a display module that comes in a surface-mount package from Broadcom Limited.

  • Family: HDSM-433
  • Application: LED character and numeric characters
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 21 weeks
  • REACH: Unaffected
