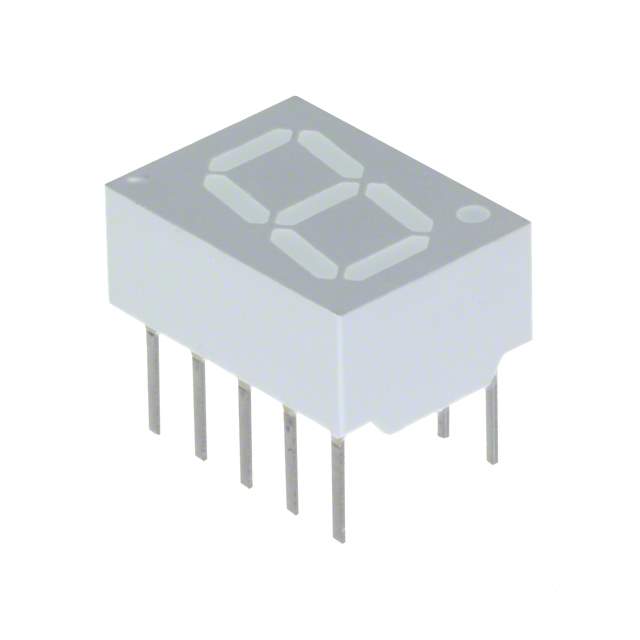

HDSP-F503-JK000 Real Image
Same model may have multiple batches, images only for reference.

HDSP-F503-JK000

Part No HDSP-F503-JK000
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEGMENT GREEN CC / Displays Module 1DIGIT 8LED Hi-Perf. Green CC 10-Pin DIP Module Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Number of Characters 1
Dimension 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm)
Digit/Alpha Size 0.40" (10.16mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Green
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 10mA
Millicandela Rating 3.5mcd
Wavelength - Peak 566nm
Power Dissipation (Maximum) 105mW
Package 10-DIP (0.300", 7.62mm)
Win Source Part Number 775834-HDSP-F503-JK000
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Family Name HDSP-F503
Introduction Date May 24, 2005
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian HDSP-F503-JK000 CAD Model

Description

The Broadcom Limited 775834-HDSP-F503-JK000 is a 7-segment display with a common cathode pin and a millicandela rating of 3.5mcd.

  • Common Pin: Common Cathode
  • Millicandela: 3.5mcd
  • Voltage-Forward: 2.1V
  • Power Dissipation: 105mW
  • Display Type: 7-Segment
  • Number of Characters: 1
  • Digit/Alpha Size: 0.40 inches
  • Package: 10-DIP (0.300 inches, 7.62mm)
  • Dimension: 0.508 inches height, 0.385 inches width, 0.250 inches depth
  • Peak Wavelength: 566nm
  • Color: Green
  • Category: Optoelectronics
  • Manufacturer: Thailand
  • Estimated EOL Date: 2025
  • Supply and Demand Status: Limited
  • Packaging: Bulk, 200
