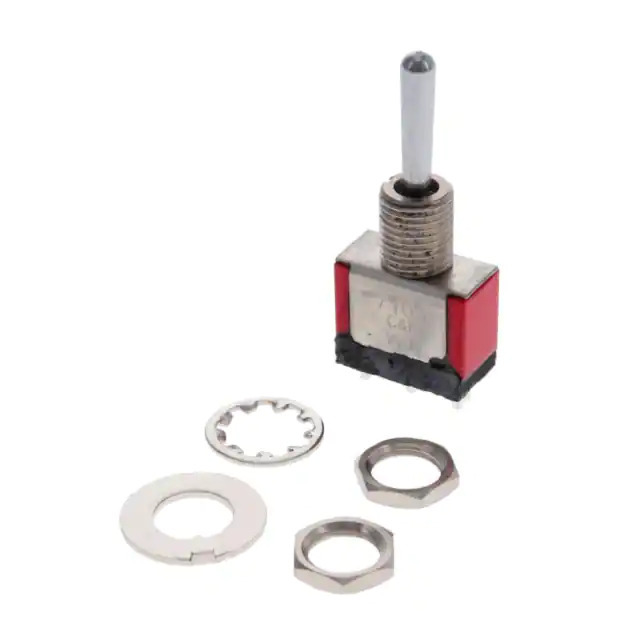

Same model may have multiple batches, images only for reference.
7201K12CBE C&K Components
Same model may have multiple batches, images only for reference.

7201K12CBE

Part No 7201K12CBE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 0.4VA 20V / Toggle Switch DPDT Panel Mount
Datasheet
7201K12CBE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Tray
Product Status Active
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Locking Lever
Actuator Length 18.59mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7201K12
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375983-7201K12CBE
Ultra Librarian 3D Model Ultra Librarian 7201K12CBE CAD Model

Description

The 1191446 is a toggle switch manufactured by C&K.

  • Series: 7000
  • Base Product Number: 7201K12
  • Circuit: DPDT (Double Pole Double Throw)
  • Switch Function: On-On
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 20V AC and 20V DC
  • Actuator Type: Locking Lever
  • Actuator Material: Brass, Chrome Plated
  • Mounting Type: Panel Mount
  • Panel Cutout Dimension: Circular - 6.35mm diameter
  • Mechanical Life: 100,000 cycles
  • Features: Epoxy Sealed Terminals
  • Electrical Life: High
