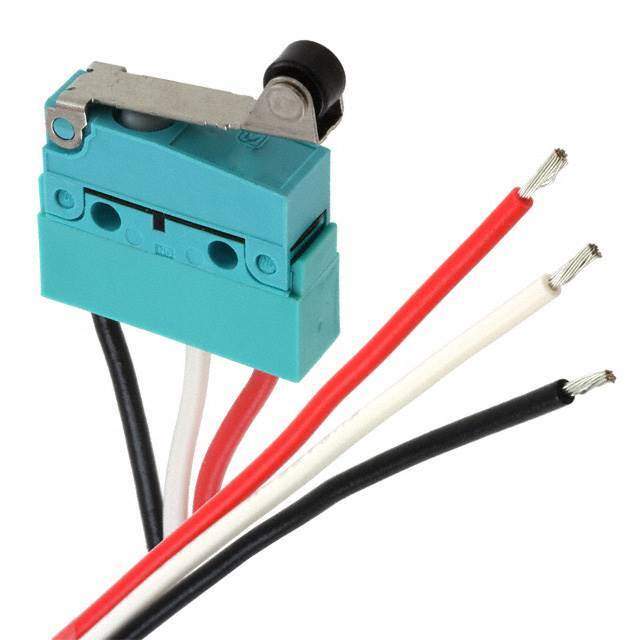

ABS161640 Real Image
Same model may have multiple batches, images only for reference.

ABS161640

Part No ABS161640
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 2A 125V  /  Switch SPDT Chassis Mount
Datasheet
ABS161640 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Panasonic Electric Works
Series ABS
Package Bulk
Product Status Obsolete
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 2A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 40gf
Release Force 3.500gf
Pretravel 0.100" (2.5mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.032" (0.81mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 50,000 Cycles
Mechanical Life 5,000,000 Cycles
Base Product Number ABS161
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Names 255-3808,ABS161640-ND
Standard Package 50
Win Source Part Number 1042449-ABS161640
Ultra Librarian 3D Model Ultra Librarian ABS161640 CAD Model

Description

The ABS161640 is a SPDT (Single Pole Double Throw) limit switch from Panasonic Electric Works that comes with wire leads termination style.

  • Series: ABS
  • Ingress Protection Rating: IP67 (Dust-tight and Waterproof)
  • Voltage Rating: 125V AC, 30V DC
  • Operating Force: 40gf
  • Mechanical Life: 5,000,000 Cycles
  • Actuator Type: Lever and Roller
  • Electrical Life: 50,000 Cycles
  • Release Force: 3.500gf
  • Pre-Travel: 0.100" (2.5mm)
  • Differential Travel: 0.020" (0.5mm)
  • Overtravel: 0.032" (0.81mm)
  • Operating Position: 0.571" (14.5mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -40°C to 85°C
