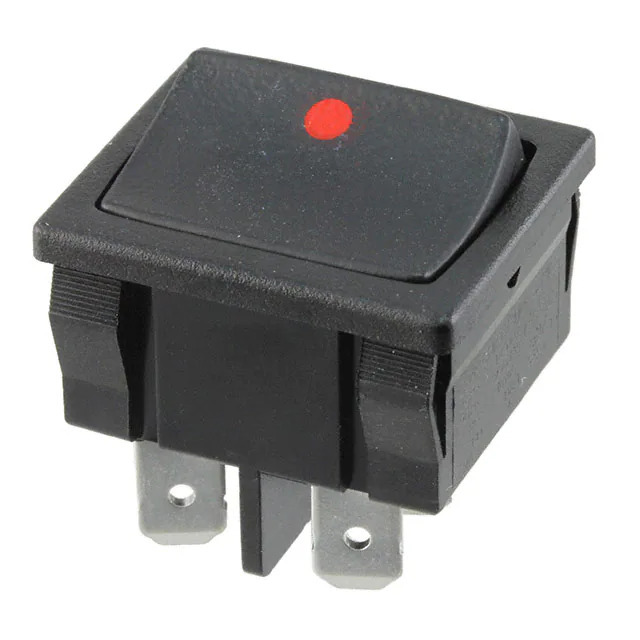

D202J12S205NQA C&K Components
Same model may have multiple batches, images only for reference.

D202J12S205NQA

Part No D202J12S205NQA
Manufacturer C&K Components
Catalog Rocker Switches
Description SWITCH ROCKER DPST 4A 125V
Datasheet
D202J12S205NQA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr C&K
Series D
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 4A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking Dot
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection -
Features -
Panel Cutout Dimensions Rectangular - 22.53mm x 19.20mm
Temperature Range - Operating -30°C ~ 65°C
Mechanical Life -
Electrical Life 10,000 Cycles
Base Product Number D202J
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376180-D202J12S205NQA
Ultra Librarian 3D Model Ultra Librarian D202J12S205NQA CAD Model

Description

The 1190144 is a rocker switch manufactured by C&K.

  • Series: D
  • Base Product Number: D202J
  • Circuit Configuration: DPST
  • Switch Function: On-Off
  • Current Rating: 4A (AC)
  • Voltage Rating: 125V AC
  • Actuator Type: Concave (curved)
  • Actuator/Cap Color: Black
  • Mounting Type: Panel mount, snap-in
  • Panel Cutout Dimension: Rectangular - 22.53mm x 19.20mm
  • Mechanical Life: 10,000 cycles
