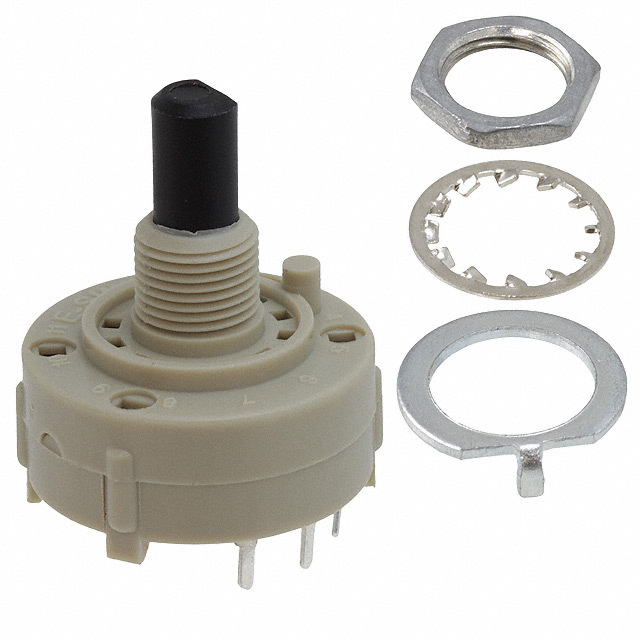

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Number of Positions 3
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP3T, Adjacent Contact
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 4A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Flatted (4.75mm Dia)
Actuator Length 14.86mm
Angle of Throw 45°
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Wire Leads
Features No Common Pin
Depth Behind Panel 12.45mm
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1559487-F10308RSWCQ
Ultra Librarian 3D Model Ultra Librarian F10308RSWCQ CAD Model
