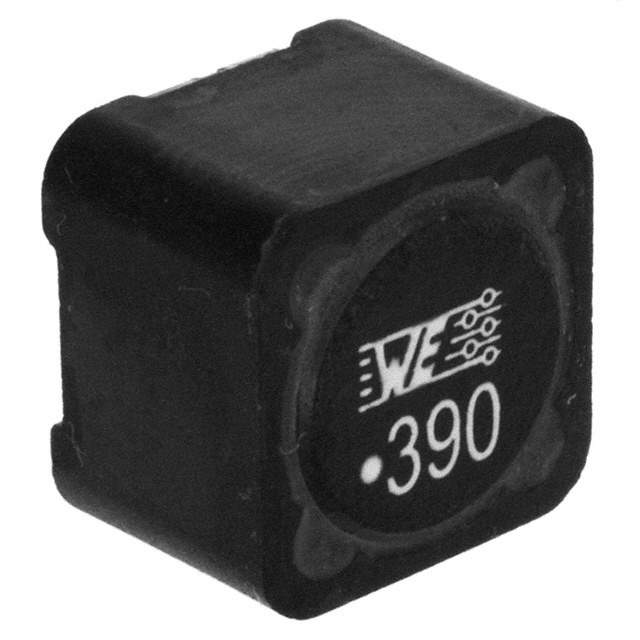

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 39μH
Tolerance ±20%
Current Rating (Amps) 4.1A
Current - Saturation 5A
Shielding Shielded
DC Resistance (DCR) 56mOhm Max
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.394" (10.00mm)
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810287-7447709390
Ultra Librarian 3D Model Ultra Librarian 7447709390 CAD Model

Description

The 810287-7447709390 is a wirewound inductor manufactured by Würth Elektronik.

  • Inductance: 39μH
  • Tolerance: ±20%
  • Material: Ferrite
  • Current Saturation: 5A
  • Self-Resonant Frequency: 6MHz
  • DC Resistance (DCR): 56mOhm Max
  • Mounting Style: SMD
  • Shielded: Yes
  • Device Package: -
  • Operating Temperature: -40°C ~ 125°C
  • Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Package Type: Nonstandard
