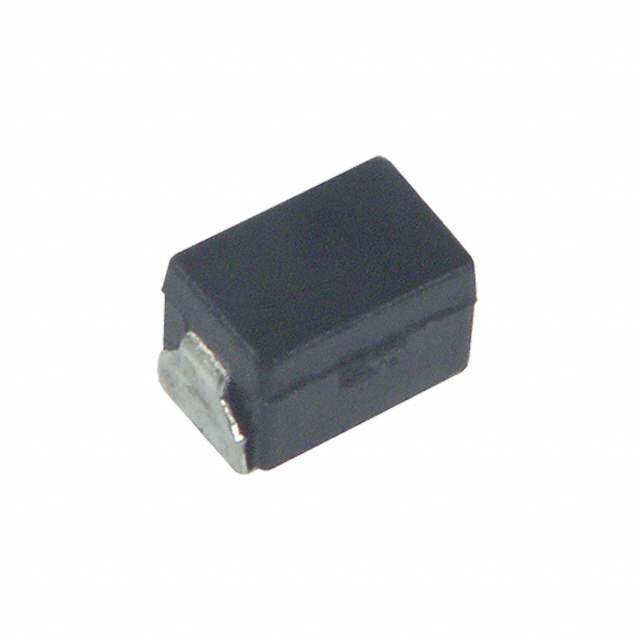

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 610mA
Current - Saturation 220mA
DC Resistance (DCR) 250 mOhm
Frequency - Self Resonant 65MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 100062-ELJ-PC4R7MF3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ELJ-PC4R7MF3 CAD Model

Description

Product Overview

The ELJ-PC4R7MF3 is a surface-mount inductor designed for high-frequency applications. Its advanced construction ensures minimal power loss and optimal efficiency, making it an excellent choice for modern electronic systems.

Features and Benefits

  • Surface-Mount Design: Facilitates rapid assembly and integration.
  • High Precision: Provides consistent performance across a broad frequency range.
  • Durable Construction: Ensures longevity and performance stability.

Applications

  • Telecommunications
  • RF Transceivers
  • Embedded Systems
