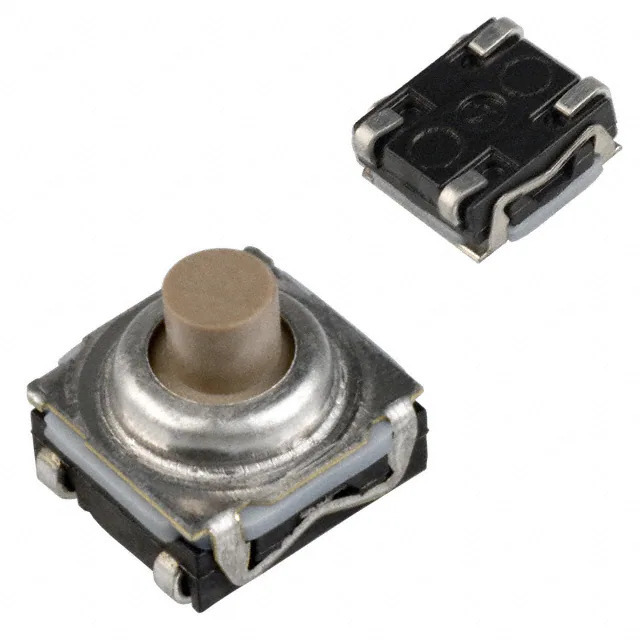

KSC521J C&K Components
Same model may have multiple batches, images only for reference.

KSC521J

Part No KSC521J
Manufacturer C&K Components
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 32V
Datasheet
KSC521J Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K
Series KSC5
Package Tape & Reel (TR)
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 32VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.60mm
Actuator Length, Right Angle -
Actuator Orientation Top or Side Actuated
Termination Style J Lead
Outline 6.20mm x 6.20mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 200gf
Ingress Protection IP50 - Dust Protected
Features Sealed
Temperature Range - Operating -40°C ~ 85°C
Actuator Material -
Switch Travel 0.25mm, 0.50mm
Mechanical Life 10,000 Cycles
Base Product Number KSC521
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1378764-KSC521J
Ultra Librarian 3D Model Ultra Librarian KSC521J CAD Model

Description

The KSC521J is a tactile switch from C&K. It is a sealed switch with a SPST-NO circuit configuration.

  • Temperature Range: -40°C to 85°C
  • Voltage Rating: 32VDC
  • Actuator Type: Standard
  • Actuator Height off PCB: 5.60mm
  • Mechanical Life: 10,000 cycles
  • Contact Rating: 0.05A @ 32VDC
  • Illumination: Non-Illuminated
  • Termination Style: J Lead
