Same model may have multiple batches, images only for reference.

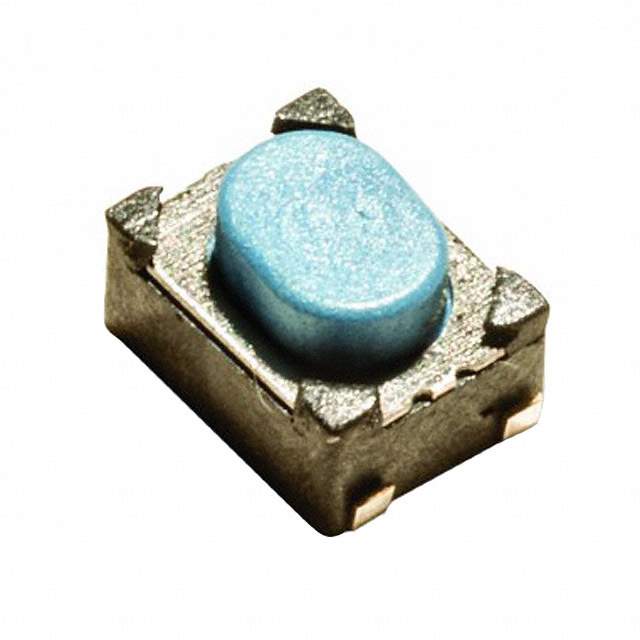

PTS810SJG250SMTRLFS Real Image
Same model may have multiple batches, images only for reference.

PTS810SJG250SMTRLFS

Part No PTS810SJG250SMTRLFS
Manufacturer C&K Components
Catalog Tactile Switches
Description Switch Tactile N.O. SPST Button J-Bend 0.05A 16VDC 100000Cycles 3.92N SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Blue
Contact Plating Silver
Contact Resistance 500 mΩ
Current Rating 50 mA
Depth 4.6 mm
Height 2.7 mm
Illumination Type Non-Illuminated
Lead Free Yes
Length 3.2 mm
Life (Cycles) 100 kcycles
Max Current Rating 50 mA
Maximum Operating Temperature 85 °C
Mechanical Life 100 kcycles
Manufacturer Package Identifier PTS810 SJG 250 SMTR LFS
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Positions 2
Orientation Straight
RoHS Compliant
Switch Function Off-Mom
Switch Travel 200 µm
Termination J-Bend
Throw Configuration SPST
Voltage Rating (DC) 16 V
Win Source Part Number 1089983-PTS810SJG250SMTRLFS
Categories Tactile Switches
Manufacturer C&K Components
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian PTS810SJG250SMTRLFS CAD Model

Description

The PTS810SJG250SMTRLFS is a two-position, non-illuminated, off-mom tactile switch manufactured by C&K Components.

  • Current Rating: 50mA
  • Voltage Rating: 16V DC
  • Switch Travel: 200µm
  • Contact Resistance: 500mΩ
  • Termination: SMD/SMT J-bend
  • Mounting: SMD/SMT
  • Mechanical Life: 100 kcycles
  • Applications: General purpose, EVPAF5B70, EVP-ASFC1A, SKRAAQE010, SKRAALE010, SKRBAKE010, KSC441J70SHLFS and KSC341JLFS
  • RoHS Compliant: Yes
