Same model may have multiple batches, images only for reference.

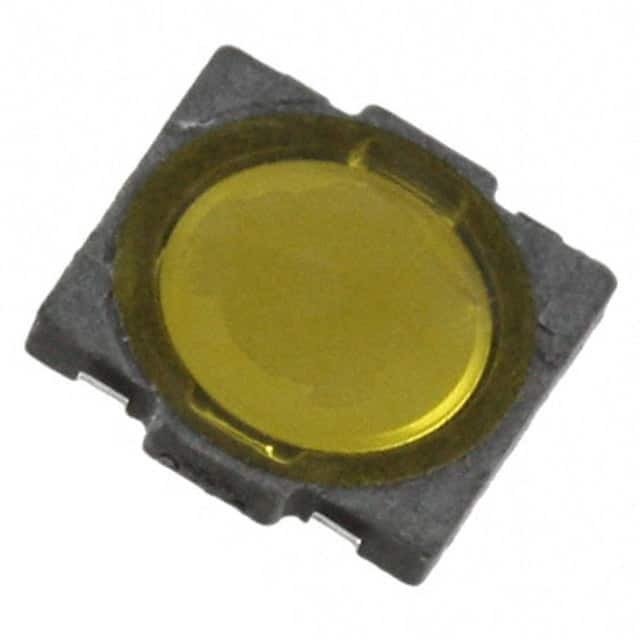

RS-197N05A1-DS RT
Same model may have multiple batches, images only for reference.

RS-197N05A1-DS RT

Part No RS-197N05A1-DS RT
Manufacturer C&K Components
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
RS-197N05A1-DS RT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K Components
Series RS, COMAX
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Snap Dome
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.65mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 4.80mm x 4.50mm
Illumination Non-Illuminated
Operating Force 160gf
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number RS-197N05
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 932428-RS-197N05A1-DS RT
Ultra Librarian 3D Model Ultra Librarian RS-197N05A1-DS RT CAD Model

Description

The RS-197N05A1-DS RT tactile switch from C&K Components is a reliable and versatile component for various electronic applications. C&K Components

  • Series: RS and COMAX
  • Termination Style: Gull wing
  • Package: Tape & reel
  • Standard Package: 2,000 pieces
  • Circuit Configuration: SPST-NO
  • Actuator Type: Snap dome
  • Contact Rating: 0.05A @ 12VDC
  • Operating Force: 160gf
  • Mounting: Surface mount
  • Outline: 4.80mm x 4.50mm
  • Status: Obsolete
