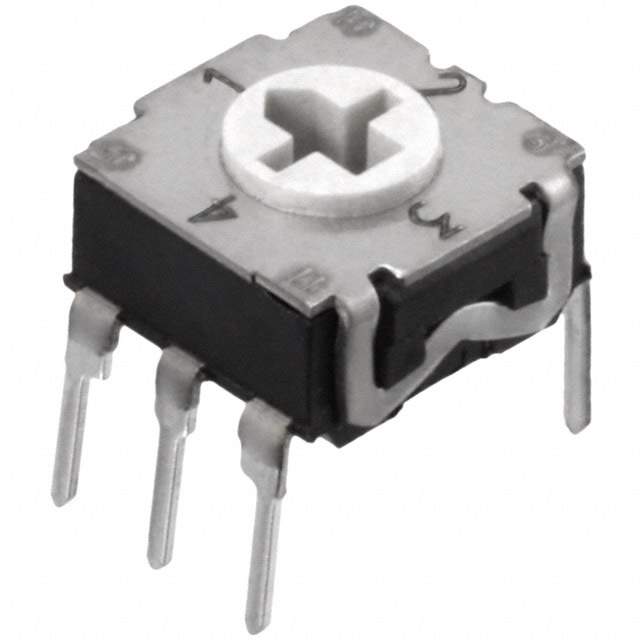

Same model may have multiple batches, images only for reference.

RTE0400N04

Name: RTE0400N04
Brand: C&K Components
SKU: 1225014
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RTE0400N04
Manufacturer	C&K Components
Catalog	DIP Switches
Description	SWITCH ROTARY DIP SP4T 100MA 30V / Dip Switch SP4T 4 Position Through Hole Rotary for Tool Actuator 100mA 30VDC
Datasheet	RTE0400N04 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>DIP Switches
Mfr	C&K
Series	RTE
Package	Tube
Circuit	SP4T
Number of Positions	4
Current Rating (Amps)	100mA
Voltage Rating	30VDC
Actuator Type	Rotary for Tool
Actuator Level	Flush, Recessed
Contact Material	Bronze
Contact Finish	Gold
Height Above Board	0.167" (4.25mm)
Mounting Type	Through Hole
Termination Style	PC Pin
Pitch	0.100" (2.54mm), Full
Washable	No
Temperature Range - Operating	-25°C ~ 85°C
Body Material	Polyphenylene Sulfide (PPS)
Length	0.291" (7.40mm)
Mechanical Life	20,000 Steps
Base Product Number	RTE0400N
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9020
Other Names	*RTE0400N04,Y36E00003FP LFT,CKN10262
Standard Package	1,950
Win Source Part Number	1225014-RTE0400N04
Ultra Librarian 3D Model	Ultra Librarian RTE0400N04 CAD Model

Alternative Products

Description

The RTE0400N04 is a DIP switch with an SP4T circuit and a rotary for tool actuator type from C&K.

Circuit: SP4T
Actuator Type: rotary for tool
Number of Positions: 4
Pitch: 0.100" (2.54mm), full
Packaging: tube
Mounting Type: through hole
Contact Finish: gold
Contact Material: bronze
Voltage Rating: 30VDC
Height Above Board: 0.167" (4.25mm)
Length: 0.291" (7.40mm)
Body Material: polyphenylene sulfide (PPS)
Mechanical Life: 20,000 steps
Actuator Level: flush and recessed
Washable: no
Operating Temperature: -25°C to 85°C
MSL Level: 1 (unlimited)
Current Rating: 100mA
REACH Status: REACH unaffected
HTSUS: 8536.50.9020
