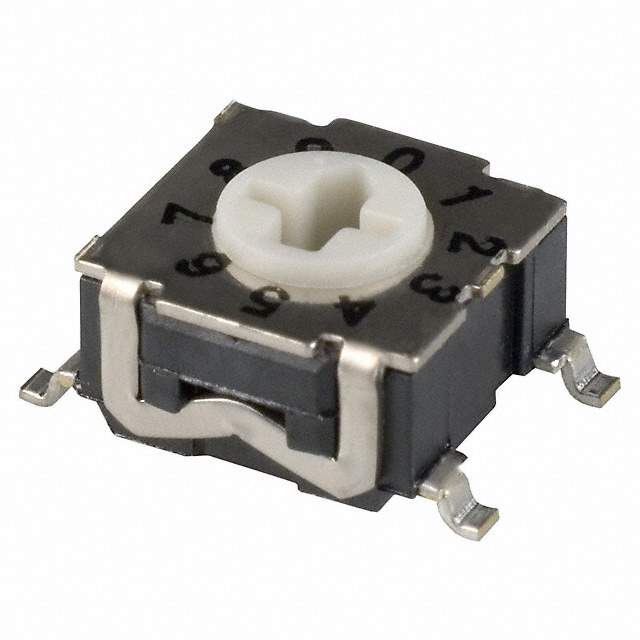

Same model may have multiple batches, images only for reference.

RTE1000G14

Name: RTE1000G14
Brand: C&K Components
SKU: 1315664
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RTE1000G14
Manufacturer	C&K Components
Catalog	DIP Switches
Datasheet	RTE1000G14 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>DIP Switches
Mfr	C&K
Series	RTE
Package	Tape & Reel
Circuit	BCD
Number of Positions	10
Current Rating (Amps)	100mA
Voltage Rating	30VDC
Actuator Type	Rotary for Tool
Actuator Level	Flush, Recessed
Contact Material	Bronze
Contact Finish	Gold
Height Above Board	0.168" (4.27mm)
Mounting	SMD (SMT)
Termination Style	Gull Wing
Pitch	0.100" (2.54mm), Full
Washable	No
Temperature Range - Operating	-25°C ~ 85°C
Body Material	Polyphenylene Sulfide (PPS)
Length	0.291" (7.40mm)
Mechanical Life	20,000 Steps
Base Product Number	RTE1000G
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9020
Win Source Part Number	1315664-RTE1000G14
Ultra Librarian 3D Model	Ultra Librarian RTE1000G14 CAD Model

Alternative Products

Description

The 1315664-RTE1000G14 is a DIP switch component by Win Source.

Series: RTE
