Same model may have multiple batches, images only for reference.

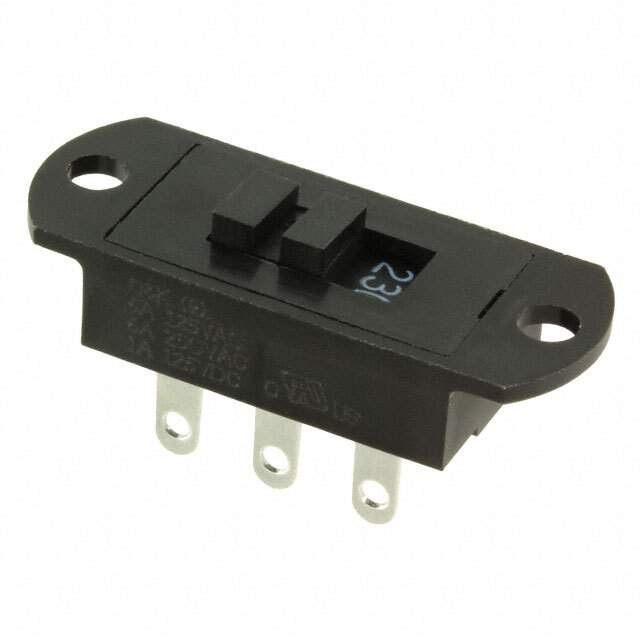

S202121SS03Q Real Image
Same model may have multiple batches, images only for reference.

S202121SS03Q

Part No S202121SS03Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 6A 125V  /  Slide Switch DPDT Panel Mount
Datasheet
S202121SS03Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On (Line Voltage Selector)
Current Rating (Amps) 6A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Screwdriver Slot
Actuator Length 1.27mm
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Features 115V-230V Marking
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S202121
Other Names CKN10659,*S202121SS03Q,S202121SS03Q,2266-S202121SS03Q
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233182-S202121SS03Q
Ultra Librarian 3D Model Ultra Librarian S202121SS03Q CAD Model

Description

This electronic component is a slide switch manufactured by C&K.

  • Win Source Part Number: 1233182-S202121SS03Q
  • Circuit: DPDT
  • Switch Function: On-On (Line Voltage Selector)
  • Termination Style: Solder Lug
  • Voltage Rating: 125V AC and DC
  • Switch Travel: 4.57mm
  • Actuator Length: 1.27mm
  • Mechanical Life: Not Specified
  • Electrical Life: 10,000 cycles
  • Operating Temperature Range: -30°C to 65°C
