Same model may have multiple batches, images only for reference.

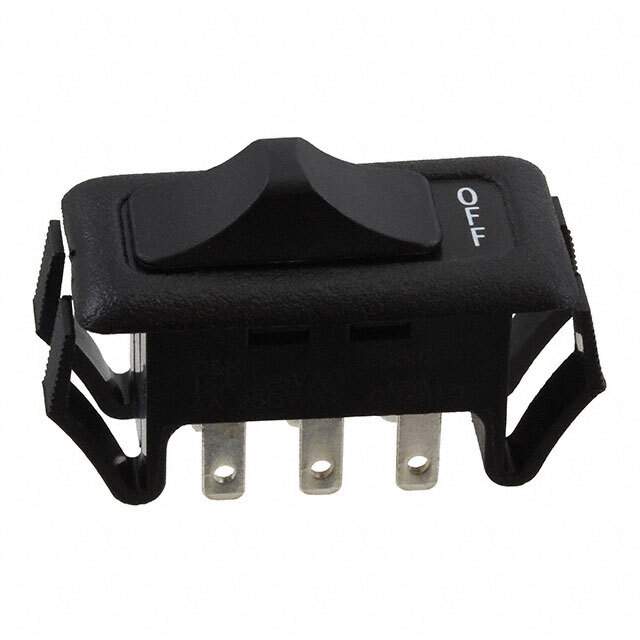

S802C21S207MQ Real Image
Same model may have multiple batches, images only for reference.

S802C21S207MQ

Part No S802C21S207MQ
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 15A 125V  /  Slide Switch DPDT Panel Mount, Snap-In
Datasheet
S802C21S207MQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Snap on Cap
Actuator Length 5.08mm
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount, Snap-In
Termination Style Quick Connect - 0.110" (2.8mm)
Features On-Off Marking on Housing
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S802C21
Other Names -S802C21S207MQ,*S802C21S207MQ,S802C21S207MQ,2266-S802C21S207MQ,CKN11012
Standard Package 72
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233170-S802C21S207MQ
Ultra Librarian 3D Model Ultra Librarian S802C21S207MQ CAD Model

Description

The S802C21S207MQ slide switch from C&K is a DPDT On-On switch that is ideal for use in electronic applications.

  • Circuit: DPDT
  • Switch Function: On-On
  • Actuator Type: Snap-On Cap
  • Termination Style: Quick Connect with a 0.110" (2.8mm) size
  • Voltage Rating: 125 V AC
  • Current Rating: 15A (AC)
  • Electrical Life: 10,000 cycles
  • Operating Temperature Range: -30°C ~ 65°C
  • Package: Bulk
  • Standard Package: 72
