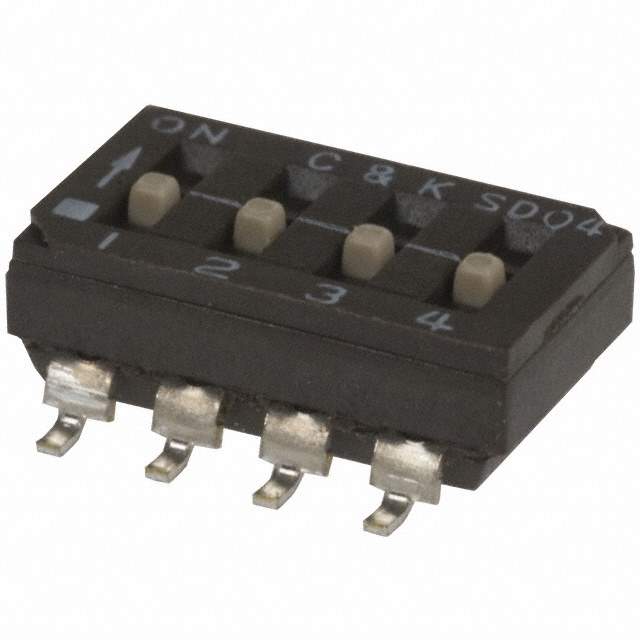

SD04H1SB

Name: SD04H1SB
Brand: C&K Components
SKU: 1233818
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SD04H1SB
Manufacturer	C&K Components
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC
Datasheet	SD04H1SB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>DIP Switches
Mfr	C&K
Series	SD
Package	Tube
Circuit	SPST
Number of Positions	4
Current Rating (Amps)	100mA
Voltage Rating	25VDC
Actuator Type	Slide (Standard)
Actuator Level	Raised
Contact Material	Beryllium Copper
Contact Finish	Gold
Height Above Board	0.180" (4.57mm)
Mounting	SMD (SMT)
Termination Style	Gull Wing
Pitch	0.100" (2.54mm), Full
Washable	Yes
Features	Tape Seal
Temperature Range - Operating	-40°C ~ 85°C
Body Material	Polyphthalamide (PPA)
Length	0.458" (11.63mm)
Mechanical Life	2,000 Cycles
Electrical Life	2,000 Cycles
Base Product Number	SD04H1
Other Names	CKN6117,*SD04H1SB
Standard Package	45
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
Win Source Part Number	1233818-SD04H1SB
Ultra Librarian 3D Model	Ultra Librarian SD04H1SB CAD Model

Alternative Products

Description

The C&K SD04H1SB DIP switch is a high-quality component that features 4 positions and a pitch of 0.100" (2.54mm), full.

Termination Style: Gull Wing
Contact Finish: Gold
Package: Tube
Height Above Board: 0.180" (4.57mm)
Length: 0.458" (11.63mm)
Circuit: SPST
Actuator Type: Slide
Actuator Level: Raised
Washable: Yes
Electrical Life: 2,000 cycles
Mechanical Life: 2,000 cycles
Operating Temperature: -40°C to 85°C
Current Rating: 100mA
