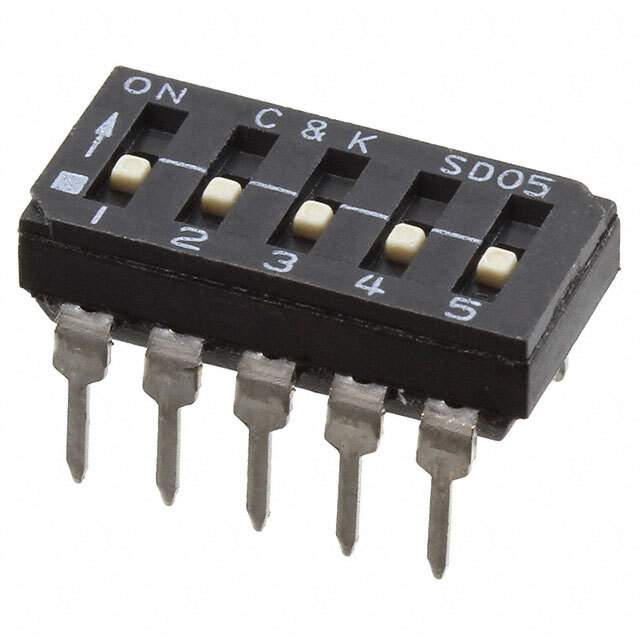

SD05H0BD

Name: SD05H0BD
Brand: C&K Components
SKU: 1233817
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SD05H0BD
Manufacturer	C&K Components
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 5 Position Through Hole Slide (Standard) Actuator 100mA 25VDC
Datasheet	SD05H0BD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>DIP Switches
Mfr	C&K
Series	SD
Package	Tube
Circuit	SPST
Number of Positions	5
Current Rating (Amps)	100mA
Voltage Rating	25VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Contact Material	Beryllium Copper
Contact Finish	Gold
Height Above Board	0.168" (4.27mm)
Mounting Type	Through Hole
Termination Style	PC Pin
Pitch	0.100" (2.54mm), Full
Washable	No
Temperature Range - Operating	-40°C ~ 85°C
Body Material	Polyphthalamide (PPA)
Length	0.558" (14.17mm)
Mechanical Life	2,000 Cycles
Electrical Life	2,000 Cycles
Base Product Number	SD05H0
Other Names	*SD05H0BD,SD05H0BD,-SD05H0BD,CKN11123
Standard Package	40
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
Win Source Part Number	1233817-SD05H0BD
Ultra Librarian 3D Model	Ultra Librarian SD05H0BD CAD Model

Alternative Products

Description

The SD series DIP switch from C&K is a 5 position SPST circuit switch that is through-hole mounted with a pitch of 0.100" (2.54mm).

Voltage Rating: 25VDC
Current Rating: 100mA
Contact Finish: Gold
Package: Tube
Temperature Range: -40°C to 85°C
Mechanical Life: 2,000 cycles
Electrical Life: 2,000 cycles
HTSUS: 8536.50.9065
