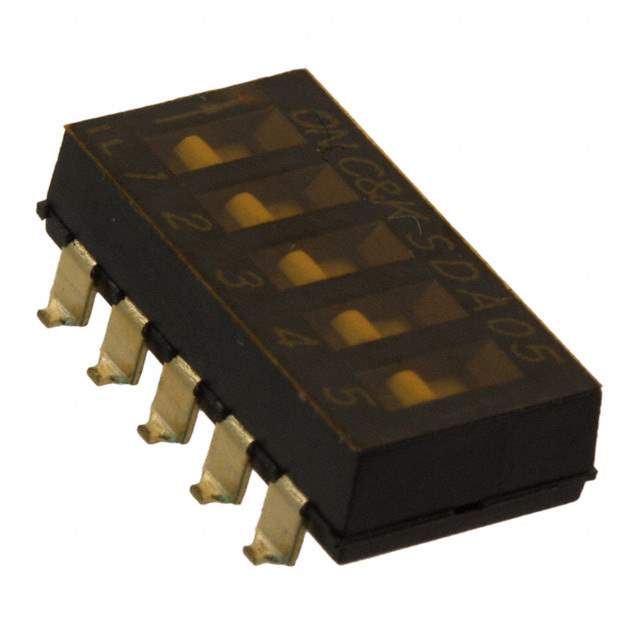

SDA05H0SB Real Image
Same model may have multiple batches, images only for reference.

SDA05H0SB

Part No SDA05H0SB
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA05H0SB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 5
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.578" (14.68mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA05H
Other Names *SDA05H0SB,CKN6071,2266-SDA05H0SB
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233765-SDA05H0SB
Ultra Librarian 3D Model Ultra Librarian SDA05H0SB CAD Model

Description

The SDA series DIP switch from C&K is a surface mount device with a pitch of 2.54mm.

  • Pitch: 2.54mm
  • Circuit Configuration: SPST
  • Number of Positions: 5
  • Actuator Type: Slide
  • Actuator Level: Flush, Recessed
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 4.45mm
  • Length: 14.68mm
  • Operating Temperature Range: -40°C to 85°C
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • Package: Tube
