Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 2
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.298" (7.58mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names CKN9149,*SP02AB
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233696-SP02AB
Ultra Librarian 3D Model Ultra Librarian SP02AB CAD Model

Description

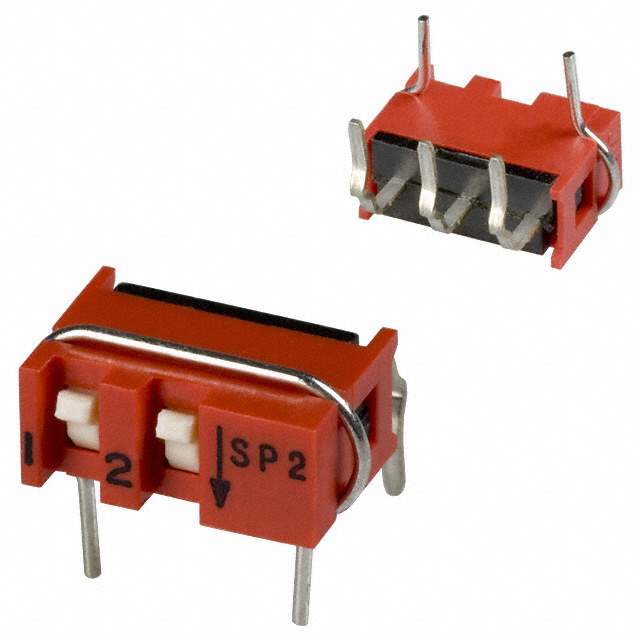

The SP02AB is a DIP switch from C&K.

  • Manufacturer: C&K
  • Circuit: Single-pole single-throw (SPST)
  • Number of Positions: 2
  • Actuator Type: Slide
  • Actuator Level: Flush and recessed
  • Voltage Rating: 20VDC
  • Current Rating: 10mA
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • Washable: Yes
  • Mounting Type: Through-hole
  • Orientation: Right-angle
  • Body Material: Polyphenylene Sulfide (PPS)
  • Contact Finish: Gold
  • Temperature Range: -20°C ~ 85°C
  • Length: 0.298" (7.58mm)
  • Height Above Board: 0.169" (4.30mm)
  • Obsolete: Yes
