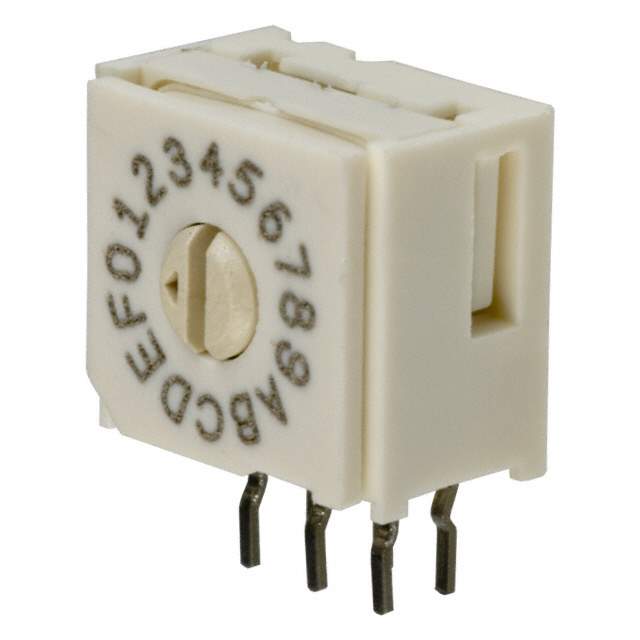

94HAB16RAT Real Image
Same model may have multiple batches, images only for reference.

94HAB16RAT

Part No 94HAB16RAT
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP HEX 100MA 50V  /  Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 50VDC
Datasheet
94HAB16RAT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Grayhill Inc.
Series 94H
Package Tube
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 100mA
Voltage Rating 50VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.400" (10.16mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Sealed
Temperature Range - Operating -40°C ~ 85°C
Body Material Plastic
Length 0.430" (10.92mm)
Mechanical Life 10,000 Cycles
Base Product Number 94HAB16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names GH7254
Standard Package 24
Win Source Part Number 1025652-94HAB16RAT
Ultra Librarian 3D Model Ultra Librarian 94HAB16RAT CAD Model

Description

The 94HAB16RAT DIP switch from Grayhill Inc. is a hexadecimal circuit switch with 16 positions and a pitch of 0.100 inches (2.54mm).

  • Positions: 16
  • Pitch: 0.100 inches (2.54mm)
  • Circuit: Hexadecimal
  • Termination Style: PC pins
  • Contact Material: Copper alloy
  • Contact Finish: Gold
  • Actuator Type: Rotary for tool
  • Actuator Level: Flush, recessed
  • Washable: Yes
  • Mechanical Life: 10,000 cycles
  • Voltage Rating: 50VDC
  • Temperature Range: -40°C to 85°C
  • Package: Tube
  • Mounting Type: Through-hole
  • Mounting Style: Right-angle
  • MSL Level: 1 (unlimited)
  • Current Rating: 100mA
