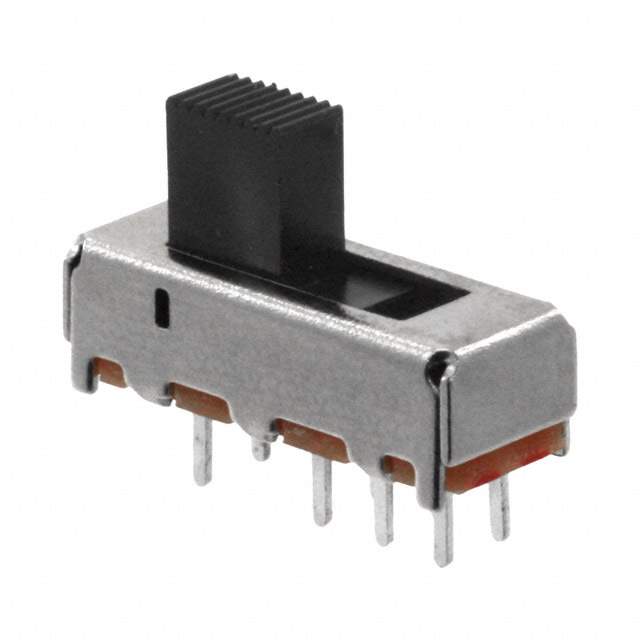

SS-23E06-G 5 Real Image
Same model may have multiple batches, images only for reference.

SS-23E06-G 5

Part No SS-23E06-G 5
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DP3T 300MA 30V  /  Slide Switch DP3T Through Hole
Datasheet
SS-23E06-G 5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series SS, COMAX
Package Bulk
Circuit DP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 5.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.50mm
Electrical Life 10,000 Cycles
Operating Force 200/250gf
Base Product Number SS-23E
Other Names *SS-23E06-G 5,HASS0361,SS23E06G5,CKN10396,SS-23E06-G5
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1232959-SS-23E06-G 5
Ultra Librarian 3D Model Ultra Librarian SS-23E06-G 5 CAD Model

Description

The C&K SS-23E06-G 5 is a DP3T slide switch that has an actuator length of 5.00mm and a switch travel of 2.50mm.

  • Actuator Length: 5.00mm
  • Switch Travel: 2.50mm
  • Current Rating: 300mA (DC)
  • Voltage Range: 30V (DC)
  • Temperature Range: -20°C to 70°C
  • Mechanical Life: 10,000 cycles
  • Electrical Life: 10,000 cycles
  • Package: bulk
  • Termination: PC pin
  • Contact Finish: silver
  • Contact Material: copper alloy
  • Actuator Material: polyoxymethylene (acetal) (POM)
