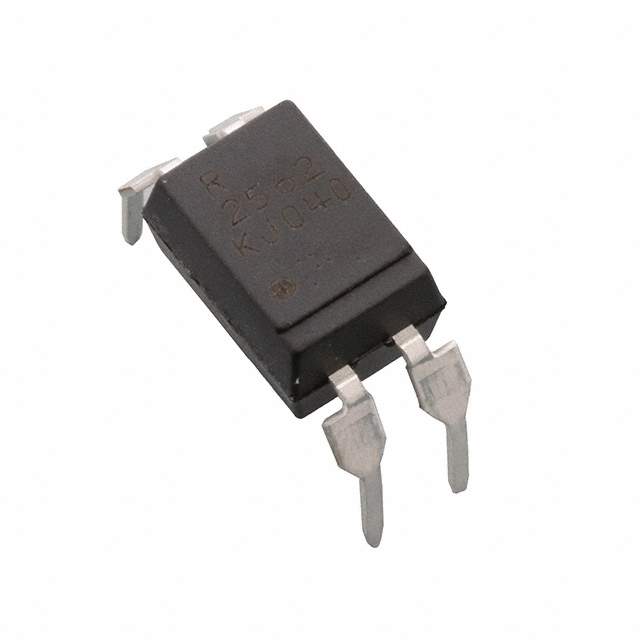

PS2561BL1-1-A Real Image
Same model may have multiple batches, images only for reference.

PS2561BL1-1-A

Part No PS2561BL1-1-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4DIP / Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Magazine
Datasheet
PS2561BL1-1-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Series NEPOC
Packaging Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 100% @ 5mA
Current Transfer Ratio (Maximum) 400% @ 5mA
Rise / Fall Time (Typ) 3μs, 5μs
Input Type DC
Output Type Transistor
Output Voltage MAX 80V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.17V
Current - DC Forward (If) (Maximum) 40mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -55°C ~ 110°C
Mounting Style Through Hole
Package 4-DIP (0.400", 10.16mm)
Manufacturer Package 4-DIP
Win Source Part Number 792503-PS2561BL1-1-A
Popularity Medium
Supply and Demand Status Limited
Family Name PS2561BL1-1
Introduction Date June 14, 2006
ECCN EAR99
Country of Origin Japan, Taiwan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian PS2561BL1-1-A CAD Model

Description

The CEL PS2561BL1-1-A is a transistor output type DC input type optocoupler.

  • Voltage Isolation: 5000Vrms
  • Maximum Output Voltage: 80V
  • Maximum Output Current per Channel: 50mA
  • Current Transfer Ratio: 100% @ 5mA, 400% @ 5mA
  • Vce Saturation: 300mV
  • Package: 4-DIP
  • Mounting: Through-hole
  • Operating Temperature Range: -55°C to 110°C
