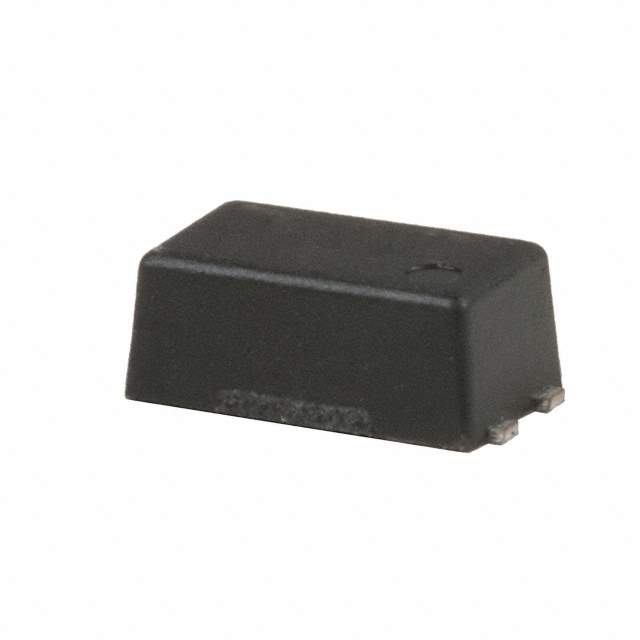

PS2911-1-V-F3-AX Real Image
Same model may have multiple batches, images only for reference.

PS2911-1-V-F3-AX

Part No PS2911-1-V-F3-AX
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 2.5KV TRANS 4-SMD
Datasheet
PS2911-1-V-F3-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 100% @ 1mA
Maximum DC Current Transfer Ratio 400% @ 1mA
Switching Turn-On and Turn-Off Time 40μs, 120μs
Rise and Fall Time 5μs, 10μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 40V
Channel Output Current 40mA
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 128767-PS2911-1-V-F3-AX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2911-1-V-F3-AX CAD Model

Description

The CEL PS2911-1-V-F3-AX is a single-channel DC input transistor output optocoupler in a 4-mini-flat package.

  • Minimum DC current transfer ratio: 100% @ 1mA
  • Maximum DC current transfer ratio: 400% @ 1mA
  • Switching turn-on and turn-off time: 40μs and 120μs, respectively
  • Rise and fall time: 5μs and 10μs, respectively
  • Maximum output voltage: 40V
  • Channel output current: 40mA
  • Continuous forward current: a maximum of 50mA
  • Isolation voltage: 2500Vrms
  • Forward voltage: 1.1V
  • Vce saturation (Max): 300mV
  • Operating temperature range: -55°C to 100°C
  • Packaging: reel packaging
