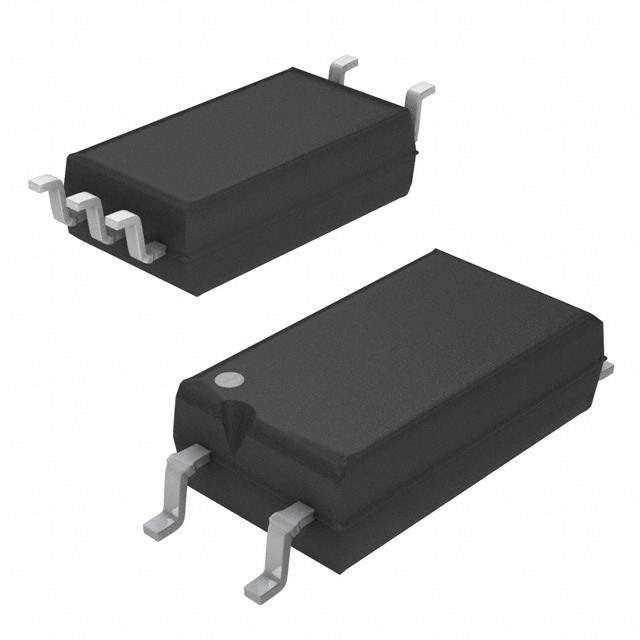

TCLT1109 Real Image
Same model may have multiple batches, images only for reference.

TCLT1109

Part No TCLT1109
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SOP
Datasheet
TCLT1109 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 200% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Switching Turn-On and Turn-Off Time 6μs, 5μs
Rise and Fall Time 3μs, 4.7μs
Input Type DC
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SOP, 5 Pin
Win Source Part Number 1106388-TCLT1109
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TCLT1109 CAD Model

Description

Vishay has manufactured the electronic component with the Win Source Part Number 1106388-TCLT1109.

  • Manufacturer: Vishay
  • Win Source Part Number: 1106388-TCLT1109
  • Category: Isolators
  • Status: Active
  • Supply and Demand: Balanced
  • Package: 6-SOP, 5 Pin
  • Temperature Range: -55°C to 100°C
  • DC Current Transfer Ratio (Min): 200%
  • DC Current Transfer Ratio (Max): 400%
  • Switching Turn-on Time: 6μs
  • Switching Turn-off Time: 5μs
  • Rise Time: 3μs
  • Fall Time: 4.7μs
  • Output Voltage (Max): 80V
  • Channel Output Current: 50mA
  • Forward Current-Max: 60mA
