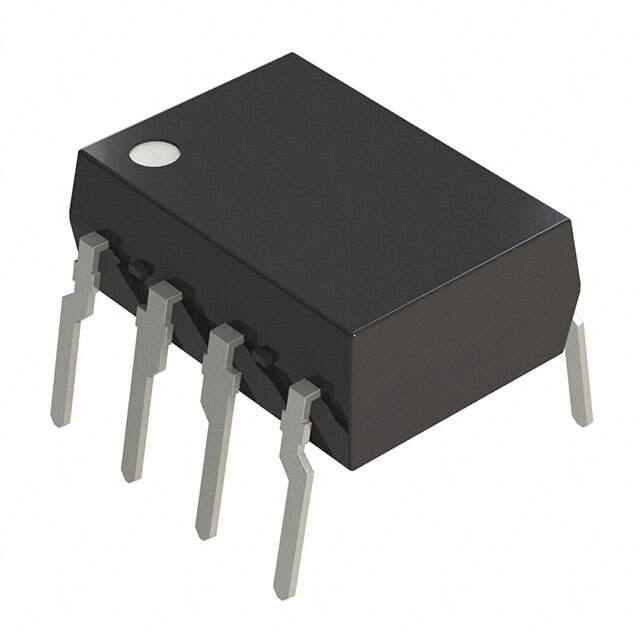

PS7141E-2A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 50 Ohm
Load Current 100mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 400 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 8-DIP
Relay Type Relay
Win Source Part Number 045940-PS7141E-2A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS7141E-2A CAD Model

Description

The PS7141E-2A is a through-hole mounted electronic component manufactured by CEL.

  • Product: relay
  • Status: obsolete (EOL)
  • Popularity: medium
  • Voltage Input: 1.2VDC
  • Load Current: 100mA
  • Voltage Load: 0 to 400V
  • Circuit: DPST (2 Form A)
  • Maximum On Resistance: 50 Ohm
