Same model may have multiple batches, images only for reference.

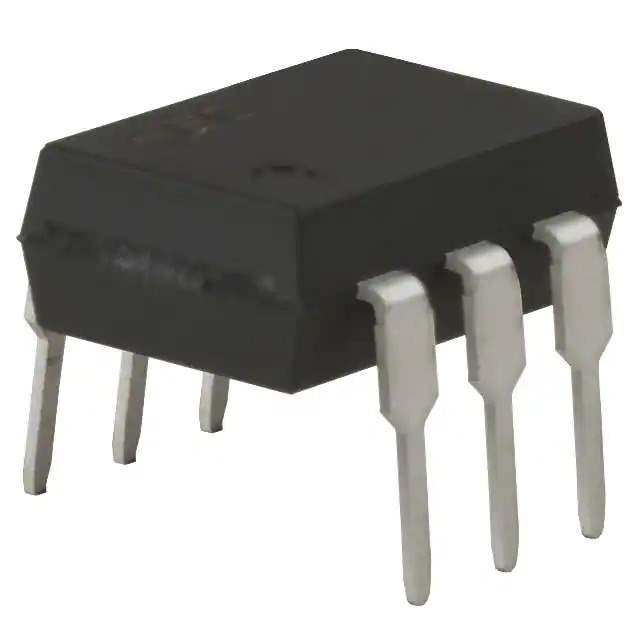

PS7160-1A Real Image
Same model may have multiple batches, images only for reference.

PS7160-1A

Part No PS7160-1A
Manufacturer CEL
Catalog Solid State Relays
Description SSR RELAY SPST-NO 90MA 0-600V / Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr CEL
Series PS, OCMOS
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 600 V
Load Current 90 mA
On-State Resistance (Max) 50 Ohms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 657081-PS7160-1A
Ultra Librarian 3D Model Ultra Librarian PS7160-1A CAD Model

Description

The PS7160-1A is a solid-state relay from the PS series by CEL.

  • Series: PS
  • Voltage Input: 1.2VDC
  • Load Current: Up to 90mA
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance: 50 Ohms
  • Mounting: Through hole
  • Package: 6-DIP
  • Voltage Load: 0V to 600V
  • Status: Obsolete
