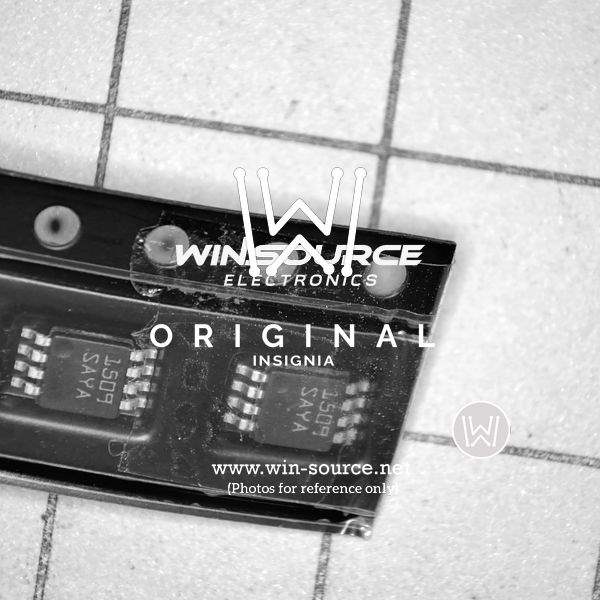

UPB1509GV-E1-A CEL UPB1509GV-E1-A Real Image
Same model may have multiple batches, images only for reference.

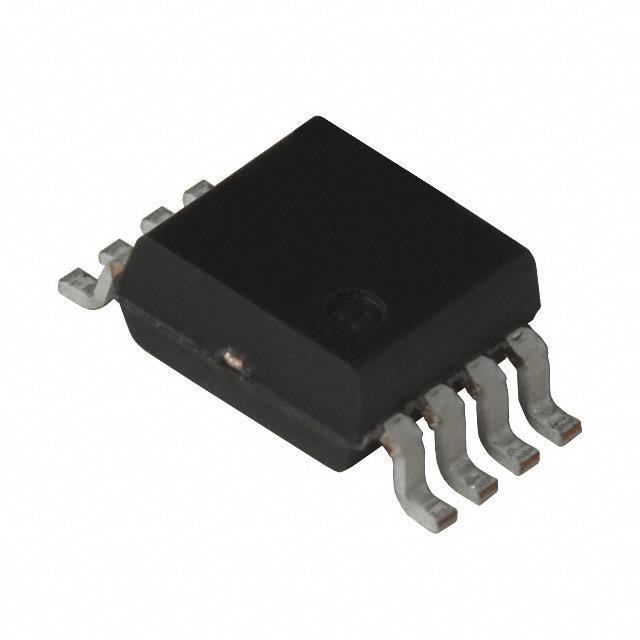

UPB1509GV-E1-A CEL UPB1509GV-E1-A Real Image
UPB1509GV-E1-A CEL UPB1509GV-E1-A Real Image
Same model may have multiple batches, images only for reference.

UPB1509GV-E1-A

Part No UPB1509GV-E1-A
Manufacturer CEL
Catalog RF Misc ICs and Modules
Description MMIC PRESCALER 1GHZ 8-SSOP / RF IC Prescaler DBS 500MHz ~ 1GHz Divide by 2, 4, 8 8-SSOP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Misc ICs and Modules
Mfr CEL
Package Tape & Reel
Product Status Obsolete
Function Prescaler
Frequency 500MHz ~ 1GHz
RF Type DBS
Secondary Attributes Divide by 2, 4, 8
Mounting Type Surface Mount
Package / Case 8-SSOP (0.126", 3.20mm Width)
Supplier Device Package 8-SSOP
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 389740-UPB1509GV-E1-A
Ultra Librarian 3D Model Ultra Librarian UPB1509GV-E1-A CAD Model

Description

Introducing the 389740-UPB1509GV-E1-A, a prescaler RF module designed for RF and wireless applications.

  • GPTDescription: With a frequency range of 500MHz to 1GHz, this module is capable of dividing signals by 2, 4, or 8.
  • GPTDescription: It operates as a DBS RF type and is supplied in an 8-SSOP package.
  • GPTDescription: The 389740-UPB1509GV-E1-A is an ideal choice for frequency division in various communication systems.
  • GPTDescription: It is compatible with alternative parts such as MC12093DR2G and UPB1509GV-A.
  • GPTDescription: This module is suitable for surface mount installation, ensuring easy integration into your circuit design.
  • GPTDescription: With an ECCN classification of EAR99, it is export control compliant.
  • GPTDescription: Please note that this product is now considered obsolete.
