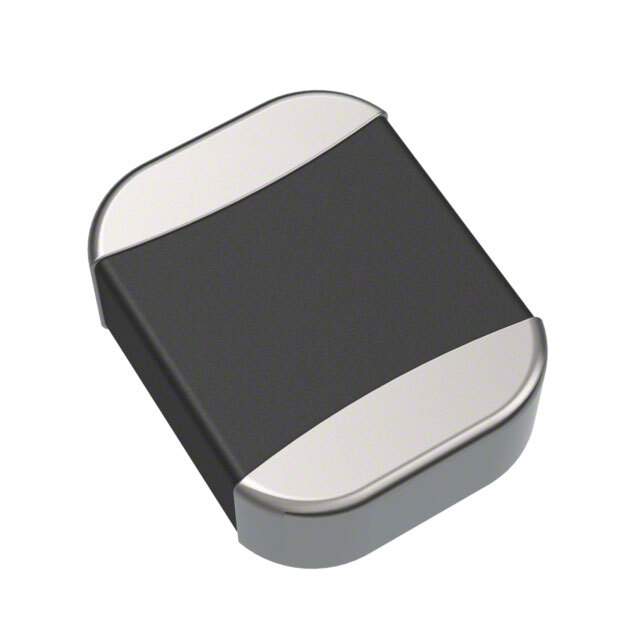

Same model may have multiple batches, images only for reference.

BDCD002016101R0MS1

Name: BDCD002016101R0MS1
Brand: Chilisin
SKU: 1348128
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BDCD002016101R0MS1
Manufacturer	Chilisin
Catalog	Fixed Inductors
Description	FIXED IND 1UH 2.3A 96 MOHM SMD / 1 µH Shielded Molded Inductor 2.3 A 96mOhm Max 0806 (2016 Metric)
Datasheet	BDCD002016101R0MS1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Chilisin Electronics
Series	BDCD
Package	Tape & Reel
Type	Molded
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	2.3 A
Current - Saturation (Isat)	3.4A
Shielding	Shielded
DC Resistance (DCR)	96mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	2 MHz
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Supplier Device Package	0806
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.039" (1.00mm)
Standard Package	3,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1348128-BDCD002016101R0MS1
Ultra Librarian 3D Model	Ultra Librarian BDCD002016101R0MS1 CAD Model

Alternative Products

Description

The Chilisin 1348128-BDCD002016101R0MS1 is a molded fixed inductor that belongs to the BDCD series of electronic components.

Type: Molded
Series: BDCD
Shielding: Shielded
Package Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
Inductance: 1 µH
Tolerance: ±20%
Seated Height (Max): 0.039" (1.00mm)
DC Resistance (DCR): 96mOhm max
Mounting Type: Surface Mountable
Win Source Part Number: 1348128-BDCD002016101R0MS1
