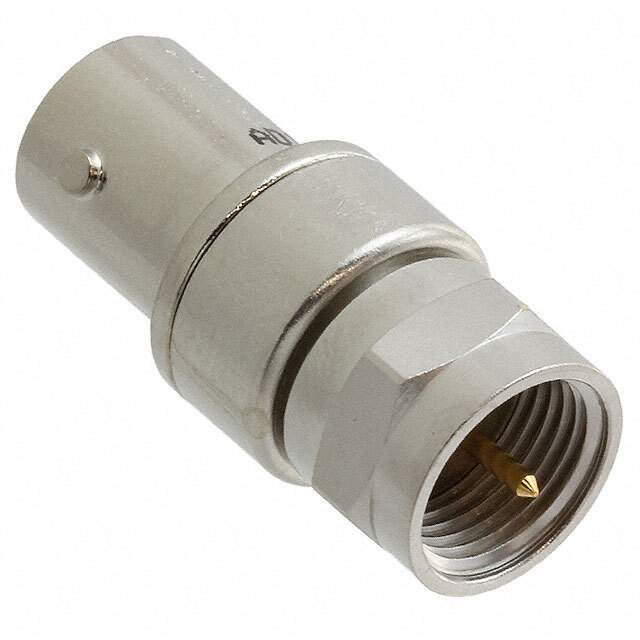

AD1300 Real Image
Same model may have multiple batches, images only for reference.

AD1300

Part No AD1300
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN ADAPT BNC JACK TO F PLUG  /  Adapter Coaxial Connector BNC Jack, Female Socket To F Plug, Male Pin 75Ohm
Datasheet
AD1300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Cinch Connectivity Solutions Trompeter
Package Bulk
Adapter Type Plug to Jack
Conversion Type Between Series
Adapter Series BNC to F
Center Gender Female to Male
Convert From (Adapter End) BNC Jack, Female Socket
Convert To (Adapter End) F Plug, Male Pin
Impedance 75Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock, Threaded
Frequency - Max 4 GHz
Center Contact Plating Gold
Body Finish Nickel
Center Contact Material Phosphor Bronze
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1097-1209
Standard Package 1
Win Source Part Number 1132014-AD1300
Ultra Librarian 3D Model Ultra Librarian AD1300 CAD Model

Description

The AD1300 is a straight plug to jack adapter for coaxial connectors, manufactured by Cinch Connectivity Solutions Trompeter.

  • Connector Type: Coaxial Adapter
  • Fastening Type: Bayonet Lock and Threaded
  • Conversion: BNC jack female socket to F plug male pin
  • Impedance: 75 Ohm
  • Frequency Range: Up to 4 GHz
  • Connector Material: Nickel-finished brass
  • Center Contact Material: Phosphor bronze with gold plating
  • Mounting: Free-hanging (in-line)
  • ECCN: EAR99 compliant
  • HTSUS: 8536.69.4010
