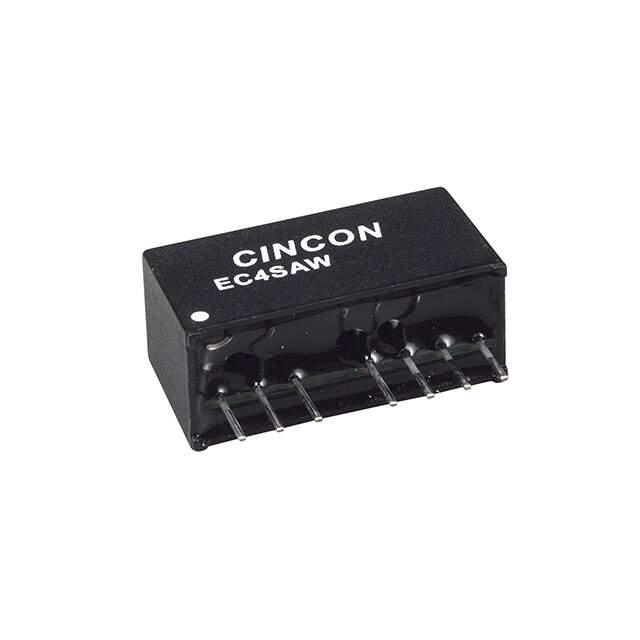

Same model may have multiple batches, images only for reference.

EC4SAW-24S05N

Name: EC4SAW-24S05N
Brand: Cincon Electronics Co. LTD
SKU: 1338416
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EC4SAW-24S05N
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 6W / Isolated Module DC DC Converter 1 Output 5V 1.2A 9V - 36V Input
Datasheet	EC4SAW-24S05N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Approval Agency	CE
Control Features	Enable, Active Low
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Mounting Type	Through Hole
Efficiency	86%
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Features	Remote On/Off, SCP
Applications	ITE (Commercial)
Voltage - Isolation	1.5 kV
Power (Watts)	6 W
Current - Output (Max)	1.2A
Voltage - Output 1	5V
Voltage - Input (Max)	36V
Voltage - Input (Min)	9V
Number of Outputs	1
Type	Isolated Module
Package	Tube
Series	EC4SAW (6W)
Mfr	Cincon Electronics Co. LTD
Category	Power Supplies - Board Mount - DC DC Converters
Package / Case	8-SIP Module, 7 Leads
Base Product Number	EC4SAW
Win Source Part Number	1338416-EC4SAW-24S05N
Ultra Librarian 3D Model	Ultra Librarian EC4SAW-24S05N CAD Model

Alternative Products

Description

The EC4SAW (6W) isolated module is a power supply board mount DC DC converter that is ideal for ITE (Commercial) applications.

Application: ITE (Commercial)
Features: Remote On/Off, SCP
Package Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Feature: Enable, Active Low
Voltage Isolation: 1.5 kV
Output: Single
Maximum Output Current: 1.2A
Input Voltage Range: 9V to 36V
Output Voltage: 5V
Efficiency: 86%
Mounting Type: Through-Hole
Package/Case: 8-SIP Module, 7 Leads
Temperature Range: -40°C ~ 85°C (With Derating)
Approvals: CE
