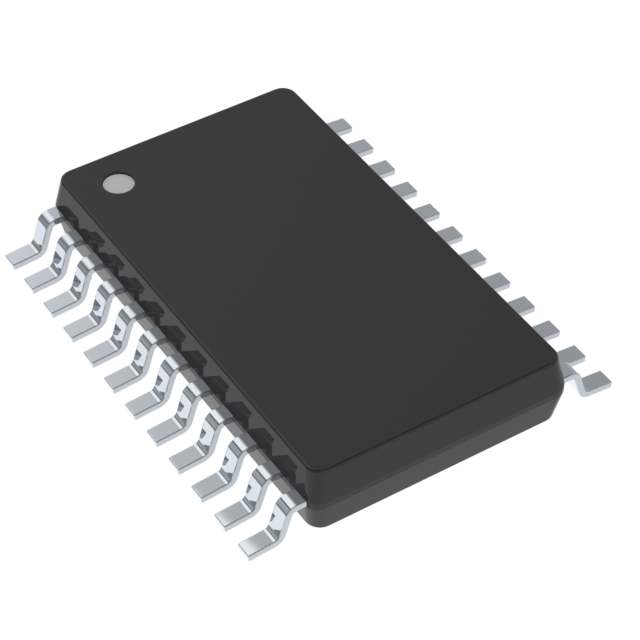

CS5523-ASZ Real Image
Same model may have multiple batches, images only for reference.

CS5523-ASZ

Part No CS5523-ASZ
Manufacturer Cirrus Logic Inc.
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description 16-bit or 24-bit, 2/4/8-channel ADCs with PGIA
Datasheet
CS5523-ASZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cirrus Logic Inc.
Packaging Tube
Resolution 16
Sampling Rate 401
Number of Inputs 4
Input Type Differential
Data Interface SPI
Configuration MUX-ADC
Number of Converters 1
Architecture Sigma-Delta
Reference Type External
Operating Supply Voltage 5V
Voltage - Supply, Digital 5V
Features Selectable Address
Operating Temperature Range -40°C ~ 85°C
Package 24-SSOP (0.209", 5.30mm Width)
Manufacturer Package 24-SSOP
Win Source Part Number 1163408-CS5523-ASZ
Manufacturer Homepage www.cirrus.com
Popularity Medium
Supply and Demand Status Balance
Family Name CS5523
Introduction Date April 14, 1998
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian CS5523-ASZ CAD Model

Description

Cirrus Logic Inc. offers a Sigma-Delta ADC that has a resolution of 16 bits. The Sigma-Delta ADC is manufactured by Cirrus Logic Inc.

  • Resolution: 16 bits
  • Win Source Part Number: 1163408-CS5523-ASZ
  • Configuration: MUX-ADC
  • Inputs: 4
  • Operating Supply Voltage: 5V
  • Data Interface: SPI
  • Voltage - Supply, Digital: 5V
  • Sampling Rate: 401
  • Manufacturer Package: 24-SSOP
  • Packaging: Tube
  • Alternative Parts: TC3402VPEG, TC3402VQRTRG, and TC3402VQRG
  • Introduction Date: April 14, 1998
  • Estimated EOL Date: 2023
  • Popularity: Medium
  • Supply and Demand: Balanced
