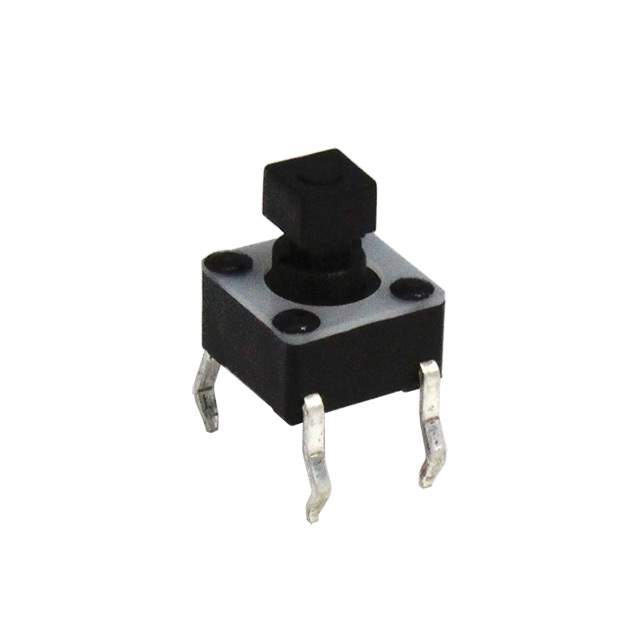

Same model may have multiple batches, images only for reference.

CT1102S2.8F160

Name: CT1102S2.8F160
Brand: CIT Relay & Switch
SKU: 1152341
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CT1102S2.8F160
Manufacturer	CIT Relay & Switch
Catalog	Tactile Switches
Description	THROUGH-HOLE PC PIN TACTILE SWIT / Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet	CT1102S2.8F160 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	CIT Relay and Switch
Series	CT1102
Package	Bulk
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 50VDC
Actuator Type	Plunger for Cap
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	7.50mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Operating Force	160gf
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	Polyamide (PA66), Nylon 6/6
Switch Travel	0.25mm
MSL Level	1 (Unlimited)
REACH Status	REACH info available upon request
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	2449-CT1102S2.8F160
Standard Package	2,000
Win Source Part Number	1152341-CT1102S2.8F160
Ultra Librarian 3D Model	Ultra Librarian CT1102S2.8F160 CAD Model

Alternative Products

Description

The CT1102 series tactile switch from CIT Relay and Switch is a SPST-NO circuit switch with an Off-Mom switch function.

Switch Function: Off-Mom
Circuit: SPST-NO
Actuator Type: Plunger for Cap
Actuator Orientation: Top Actuated
Switch Travel: 0.25mm
Contact Rating @ Voltage: 0.05A @ 50VDC
Operating Force: 160gf
Illumination: Non-Illuminated
Mechanical Life: Unspecified
Ingress Protection: Unspecified
Operating Temperature: -40°C to 85°C
Mounting Type: Through Hole
Outline Dimensions: 6.00mm x 6.00mm
Actuator Material: Polyamide (PA66), Nylon 6/6
Packaging: Bulk
Standard Package: 2,000
