Same model may have multiple batches, images only for reference.

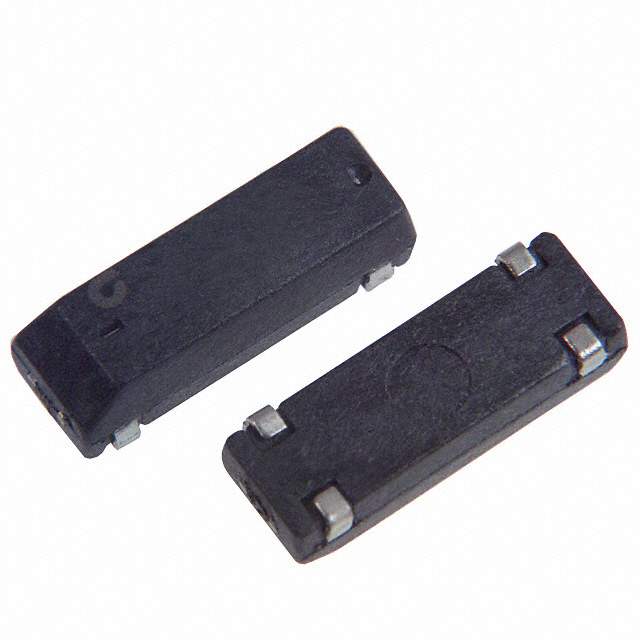

CM309S33.8688MABJTR Real Image
Same model may have multiple batches, images only for reference.

CM309S33.8688MABJTR

Part No CM309S33.8688MABJTR
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 33.8688MHZ 18PF SMD
Datasheet
CM309S33.8688MABJTR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Citizen Finedevice Co Ltd
Series CM309S
Packaging Reel package
Part Status Obsolete(EOL)
Type MHz Crystal
Frequency 33.8688MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohm
Operating Mode 3rd Overtone
Operating Temperature Range -10°C ~ 60°C
Mounting SMD
Package 4-SOJ, 9.40mm pitch
Dimension 0.488" L x 0.173" W (12.40mm x 4.40mm)
Height - Seated (Maximum) 0.146" (3.70mm)
Win Source Part Number 771616-CM309S33.8688MABJTR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CM309S33.8688MABJTR CAD Model

Description

The Citizen Finedevice Co Ltd CM309S33.8688MABJTR is a MHz crystal manufactured by Citizen Finedevice Co Ltd.

  • Series: CM309S
  • Package: Reel
  • Mounting Type: SMD
  • Operating Temperature: -10°C to 60°C
  • Frequency: 33.8688MHz
  • ESR: 100 Ohm
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Mode: 3rd overtone
  • Supply and Demand Status: Limited
