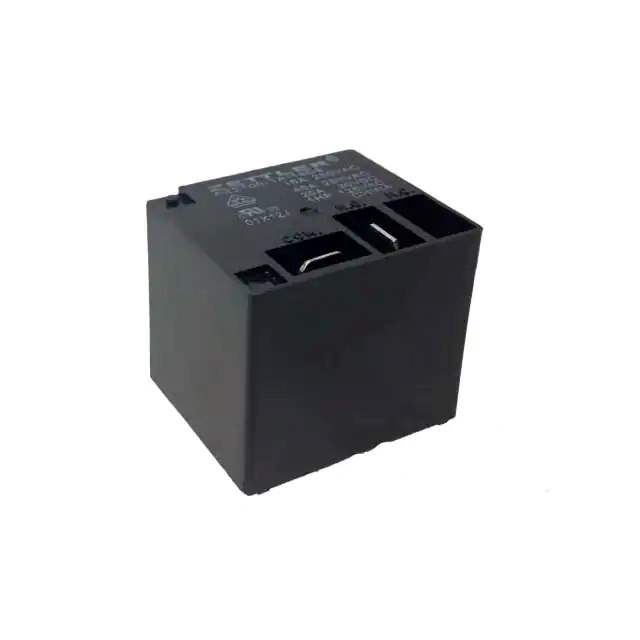

AZ2100-1C-24DEF Real Image
Same model may have multiple batches, images only for reference.

AZ2100-1C-24DEF

Part No AZ2100-1C-24DEF
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 15A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Datasheet
AZ2100-1C-24DEF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr American Zettler, Inc.
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 15 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 36.4 mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 660 Ohms
Base Product Number AZ2100
Standard Package 240 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 912384-AZ2100-1C-24DEF
Ultra Librarian 3D Model Ultra Librarian AZ2100-1C-24DEF CAD Model

Description

The AZ2100-1C-24DEF is a SPDT (1 Form C) power relay from American Zettler, Inc.

  • Coil Voltage: 24VDC
  • Contact Rating: 15A
  • Switching Voltage: 277VAC, 30VDC maximum
  • Termination Style: PC pin and quick connect termination
  • Seal: Sealed fully
  • Temperature Range: -55°C to 85°C
  • Standard Package: 240 pcs
  • Coil Resistance: 660 Ohms
  • Coil Current: 36.4 mA
  • Contact Material: Silver cadmium oxide (AgCdO)
