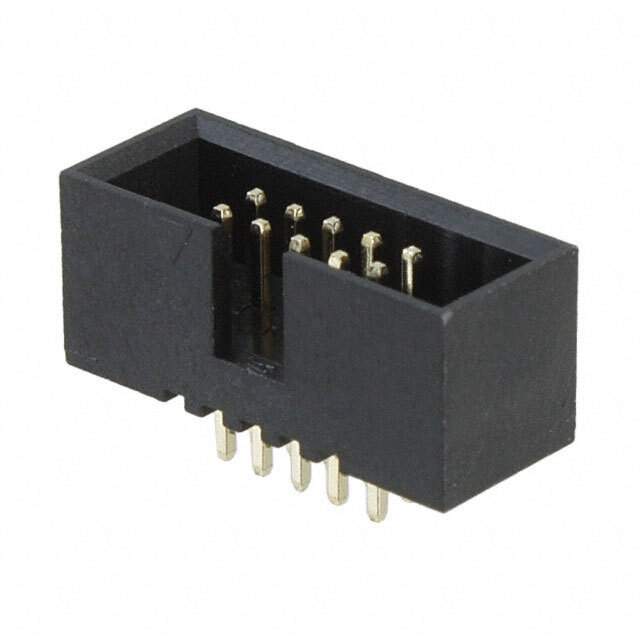

Same model may have multiple batches, images only for reference.

3220-10-0100-00

Name: 3220-10-0100-00
Brand: CNC Tech
SKU: 811975
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3220-10-0100-00
Manufacturer	CNC Tech
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 1.27MM / INSULAATOR MATERIAL: NYLON-6T, UL 94V- 0
Datasheet	3220-10-0100-00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	CNC Tech
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Post	0.083" (2.11mm)
Insulation Height	0.213" (5.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Insulation Material	Polyamide (PA6T), Nylon 6T
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Manufacturer Pack Quantity	3,200
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	811978-3220-10-0100-00
Ultra Librarian 3D Model	Ultra Librarian 3220-10-0100-00 CAD Model

Alternative Products

Description

The CNC Tech 3220-10-0100-00 is a through-hole header connector.

Application: Board to cable/wire
Popularity: Low
Supply and Demand Status: Limited
Pitch: 0.050 inches
Contact Finish: Gold
Design: Shrouded
